Boom Barrier BB 6000
Product Name: Boom Barrier
Model Number: ETS- BB 6000
Length: Max 6 Meters | Speed: 3-5 Seconds
Description:
ETS-BB 6000 is an automatic mechanical barrier loaded with DC Brushless Servo Motor which is extremely durable and reliable to provide swift and uninterrupted access to authorized vehicles. It is available with a max. boom arm size of 6 meters and the up-down speed can be controlled through between 3 – 5 seconds through the inbuilt mechanism. The machine is loaded with dual spring technology which gives it an edge for stability in operation and long life. It is fully compatible with access control RFID Readers, IOT Controllers, Ticket Dispensers etc. There are inbuilt slots available for connecting loop detectors and photocell sensors. ETS-BB-6000 is one the most suitable model for application related to parking lots, soc
Features:
- Max Boom Arm Length: 6 meters
- Speed: 3 – 5 seconds can be set as per traffic movement (Adjustable Speed Function)
- DC permanent magnet synchronous motor (PMSM)
- DC Brushless servo motor
- Available in straight telescopic arm structure

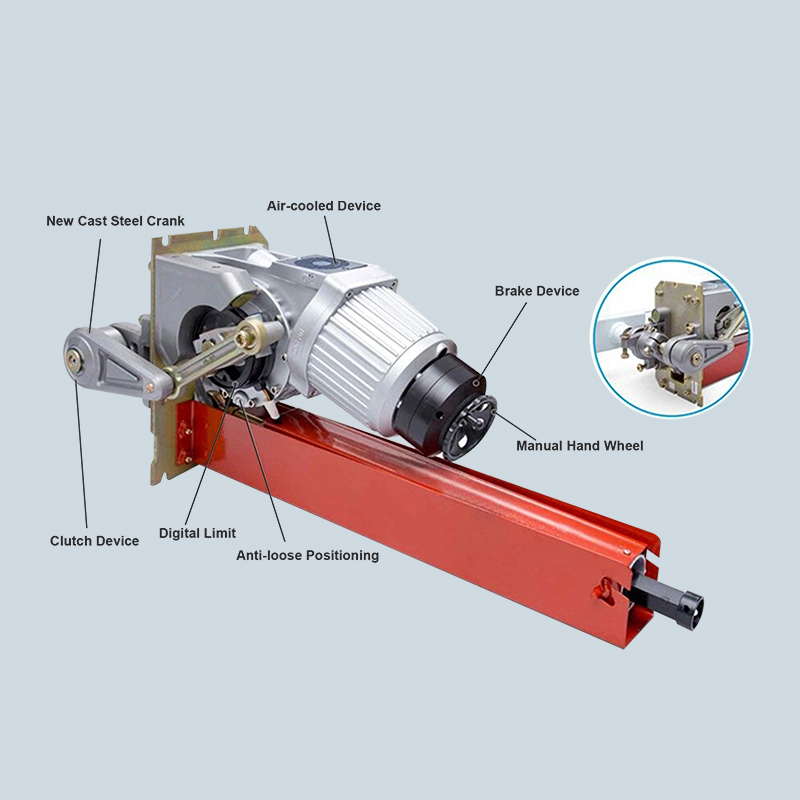

- Double tension spring crank transmission design for more stable and reliable structure.
- Left and Right-Side Installation Options which can be easily configured as per project
requirement. - In Built fan for avoiding overheating.
- Manual clutch release option to operate the barrier during power failure.
- Auto Close Function through setting in the control panel.
- Fully compatible with single and double channel loop detectors, infrared photocells, RFID
- Readers, door controllers, Traffic Light etc.
- Can be operated from a distance through remote or push button
Specifications:
| Model | ETS-BB 6000 |
| Automation Grade | Automatic |
| Speed | 3 – 5 Seconds (inbuilt adjustable function) |
| Boom Arm Length | Max 6 Meters |
| Boom Type | Straight Telescopic Arm |
| Boom Weight | Approx. 3 – 6 kg (Depending on length) |
| Max Motor Power | 150W |
| Max Motor Speed | 24 rotation / minute |
| Max Motor Torque | 240 N.m |
| Frequency | 50 / 60 Hz |
| Input Voltage | AC220V±10%,AC110V±10% |
| DC310V | DC 310 V |
| Duty Cycle | 100% |
| Working Temp. | -35 to + 85 degree cel. |
| Relative Humidity | ≤ 90% |
| Protection | IP 54 Rated |
| Net Weight | 60 kg. |
| Dimension | 362*325*1030mm |
| Remote Working Range | ≥ 30m |
| Compatibility | All Type of RFID Readers, IOT Controller, Loop, Photocells (Anti Crash Sensor), Ticket Dispensing Machines etc. |
| Accessories | Remote, Push Button, Loop, Photocells |
| MTBF | 5000000 cycles |
| Traffic Flow Applicable | 3000 times/24hours |
