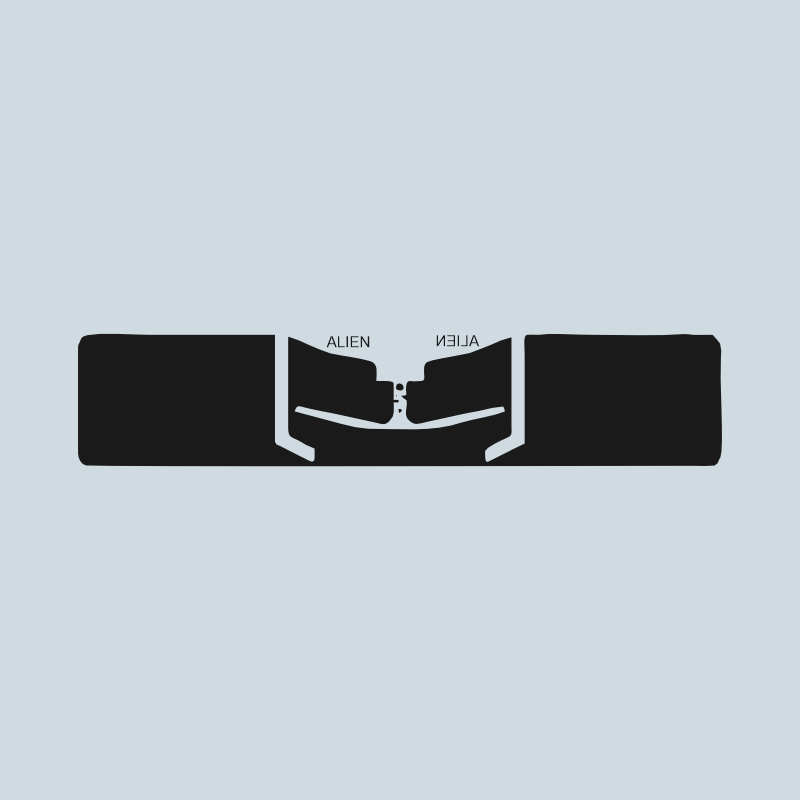

Designed for increasingly complex Automotive windshield glass, traditionally difficult-to-tag RF materials and general purpose asset management, the 93 x 19 mm Higgs™-9 UHF RFID IC based “G” antenna design offers class leading performance and reliability.
Applications include (but not limited to):
Enhanced memory footprint includes a 48-bit Unique TID for authentication and serialization applications and password protected read and write support to prevent unauthorized viewing and modification of the tag’s data.
ALN-9954 inlays are World Tag compliant, enabling consistent operation across the diverse frequencies of the Americas, Europe, Middle East, Asia, and Africa.

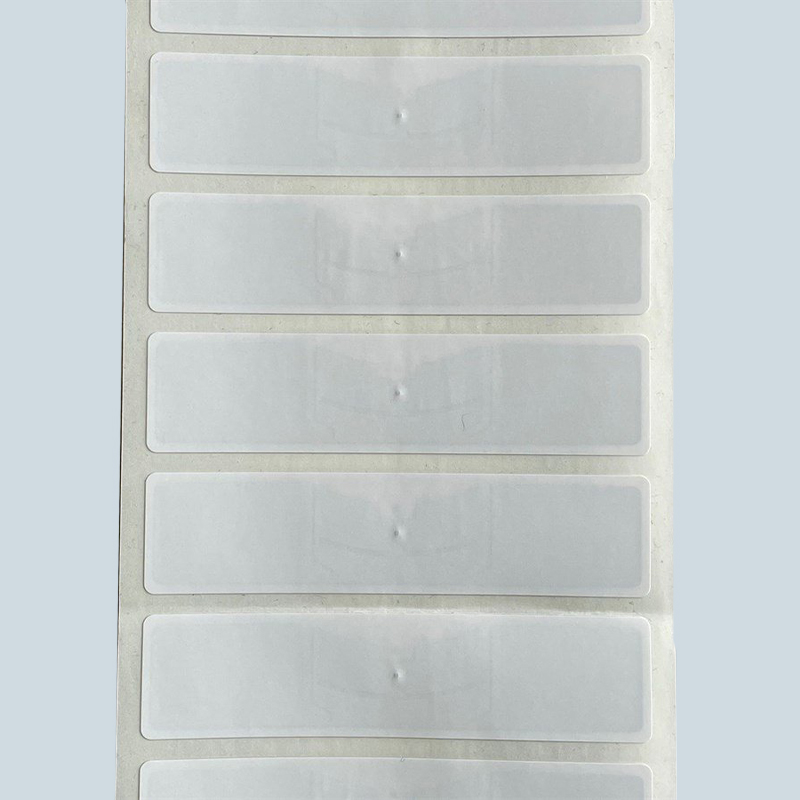

Wet Inlay | |
Inlay Width | 3.799” [96.5mm] |
Inlay Length | 0.913” [23.2mm] |
Web Width | 3.925” [99.7mm] |
Web Pitch | 1.0” [25.4mm] |
Core Width | 3.874” [98.4mm] |
Core ID | 6” [152.4mm]* |
Core Material | Fiberboard |

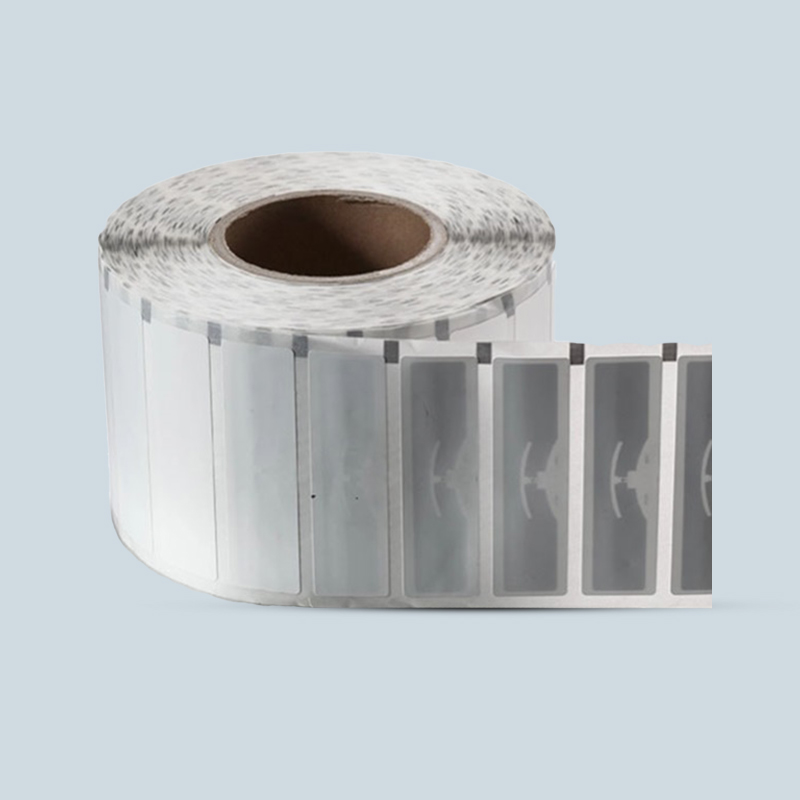

Inlays per Roll | 12,500 Nominal |
Maximum Roll | OD < 16” [406.4mm] |
Roll Labelling Data | Roll #, Quantity |
White | TT Printable White Film Only |
Overlay Adhesive | General Purpose Permanent |
Inlay Adhesive | General Purpose Permanent |
Adhesive Application Temperature | > +25oF [-4oC] |
Adhesive Service Temperature | -40°F to +200°F
[-40°C to +93.3°C] |
Release Liner | Release Liner 40# SCK |
Dry Inlay | |

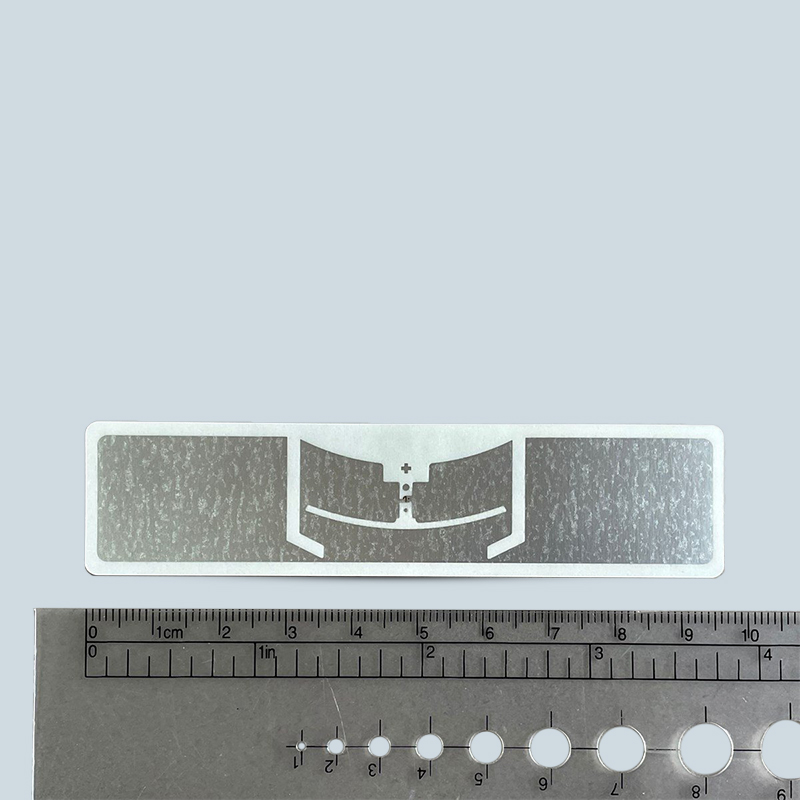

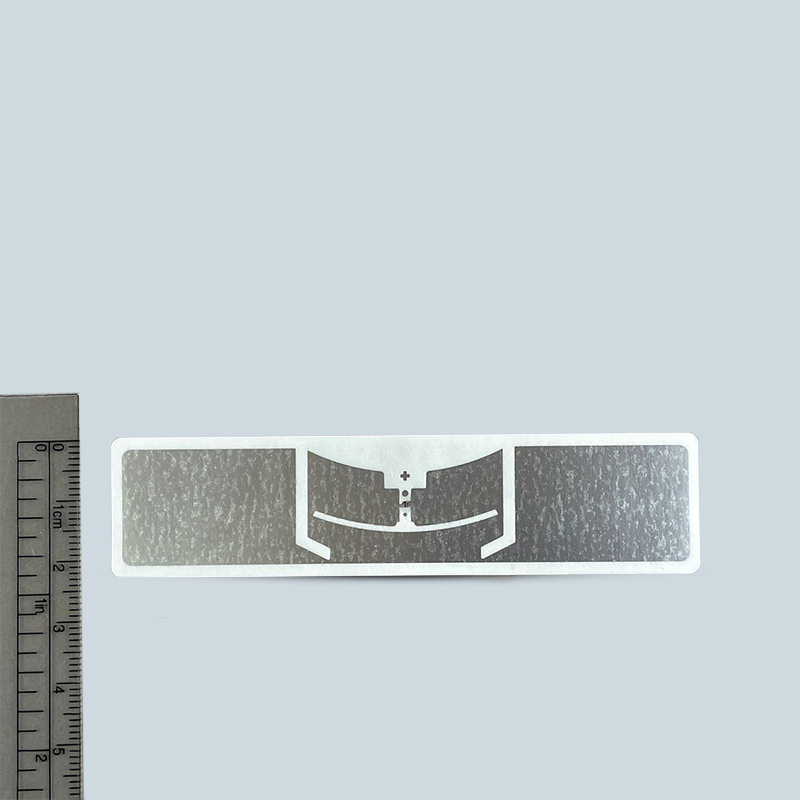

Antenna Width | 3.66” [93.0mm] |
Antenna Length | 0.748” [19.0mm] |
Web Width (-R) | 4.173” [106.0mm] |
Web Width (-SR) | 3.799” [96.5mm] |
Web Pitch | 1.0” [25.4mm] |
Core Width (-R) | 3.799” [96.5mm] |
Core Width (-SR) | 4.173” [106.0mm] |
Core ID | 6” [152.4mm]* |
Core Material | Fiberboar |
Inlays per Roll | 12,500 +/- 500 |
Maximum Roll | OD < 12” [304.8mm] |
Roll Labelling Data | Roll #, Quantity |
Environmental | |
Shelf Life | Dry Inlays: 5 years at +77°F [+25°C] @ 40% RH
Wet Inlays: 2 years at +77°F [+25°C] @ 40% RH |
Recommended Storage | +77°F [+25°C] @ 40% RH
-13°F to 122°F |
Storage Limits | [-25°C to +50°C]
20% to 90% RH Non-condensing |
Operating Limits | -40°F to +158°F
[-40°C to +70°C] 20% to 90% RH Non-condensing |
Bend Diameter | > 1.97” [50mm] |
Pressure | < 5N/mm2 |
Drop Resistance | Per ASTM D5276 |
Write Cycles | 200,000 @ 25 ̊C |
RoHs | 2002/95/EC, 2005/618/EC,
2011/65/EU Compliant |
REACH | 1907/2006/EC Compliant |
ESD Limit– HBM / CDM | 5.0kV / 1.5kV |
RFID | |
Protocols Supported | ISO/IEC 18000-6C EPC global Class 1 Gen 2 |
Integrated Circuit | Alien Higgs-9 |
Operating Frequency | 840–960 MHz |
EPC Size | 96-496 Bits |
User Memory | Up to 688 Bits |
TID | 32 Bits |
Unique TID | 48 Bits |
Access Password | 32 Bits |
Kill Password | 32 Bits |
