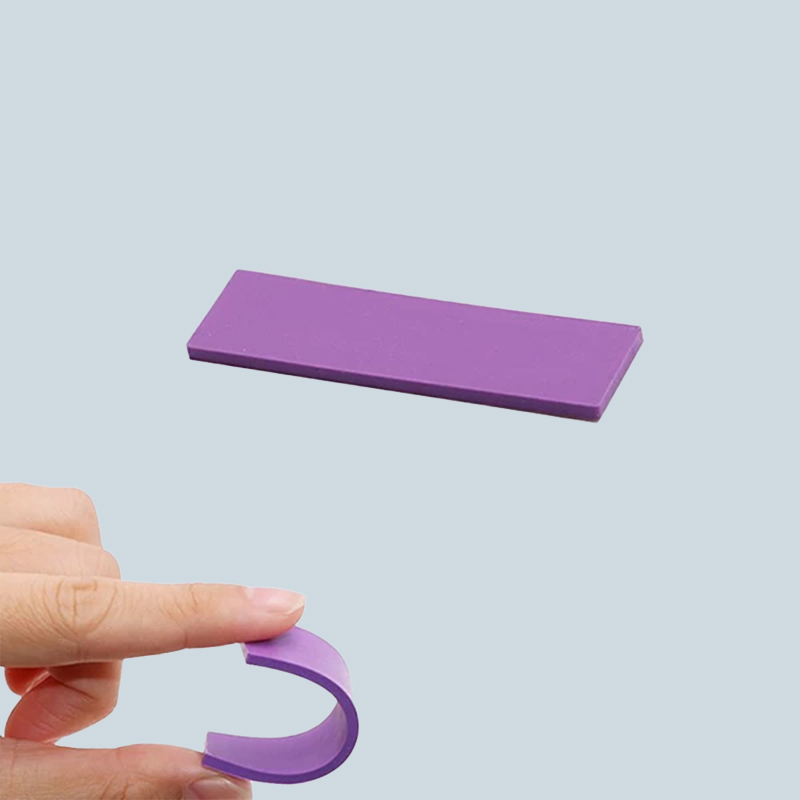

ETS-RT 07 B is a high performance RFID UHF Laundry Tag made with silicon material. It is extremely flexible and durable in nature and allows simultaneous read range of up to 3 mt (dependent on reader used and environment conditions). It works on global UHF frequency (865 – 928 MHz) and is fully compliant with ISO18000-6C (EPC-Gen2) protocol. With an inbuilt Alien Higgs 3 chip, this tag is widely used in laundry applications for washing, dry-cleaning, ironing and drying purpose. Its small, soft and flexible material makes it an ideal tag for clothes, textile and linen. It can continuously resist high temperature of industrial washing. These tags can be used for 200 wash cycles with soap/detergent with hot water.
There are various ways to attach these tags to the linen:
Model Number | ETS-RT 07 B |
Application | Laundry and Textile Items |
Frequency | UHF 865 – 868 MHz, 902 – 928 MHz |
Protocol | EPC Gen 2 ISO/IEC 18000 – 6C |
Chip Type | Alien Higgs / Monza / R6/ R6P/ UCODE 7/8 |
Chip Memory | 32 bits TID, 96bits EPC Number, 512 bit user memory (chip dependent) |
Working Mode | Read and Write |
Data retention | 10 years |
Read Range |
3.5 mt with fixed 12 dbi integrated reader
2.4 mt with fixed 8 dbi integrated reader 2 meters with handheld reader The test readings are based on actual tests with ETS hardware. |
Wash Cycles | Up to 200 |
Write Range | Up to 2 mt |
High Temp. Exposure | Washing: 90°C @ 15 minutes -200 cycle
Pre-drying in Tumbler: 180°C @ 30minutes Ironer: 180°C @ 10 seconds -200 cycles Sterilization Process: 135°C @ 20 minutes |
Base Material | Silica Gel |
Material | Flexible Textile |
Size | 50 X 14 X 2.2 mm (+-0.2 mm) |
Colour | White |
Protection Grade | IP 68 |
Weight per piece | 7 grams +- 1 |
Package | 200 pcs / box |
Expected Life | 5 Years |
