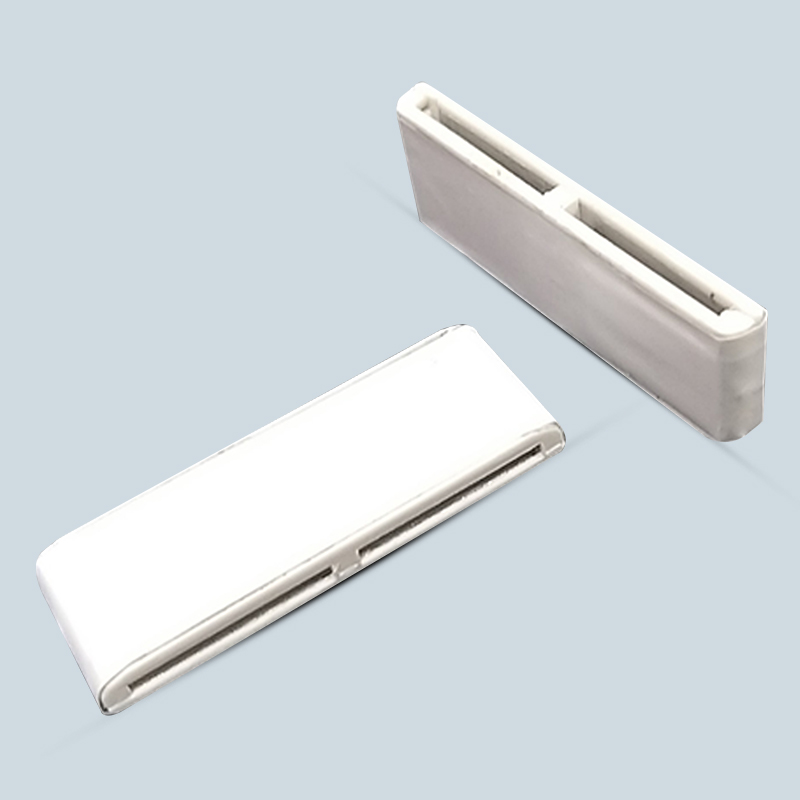

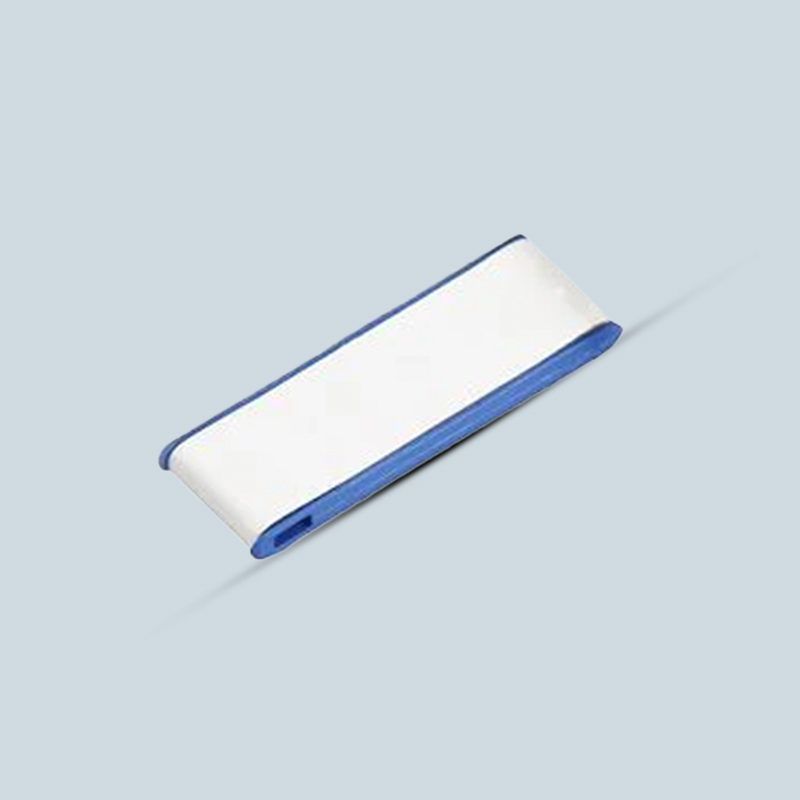

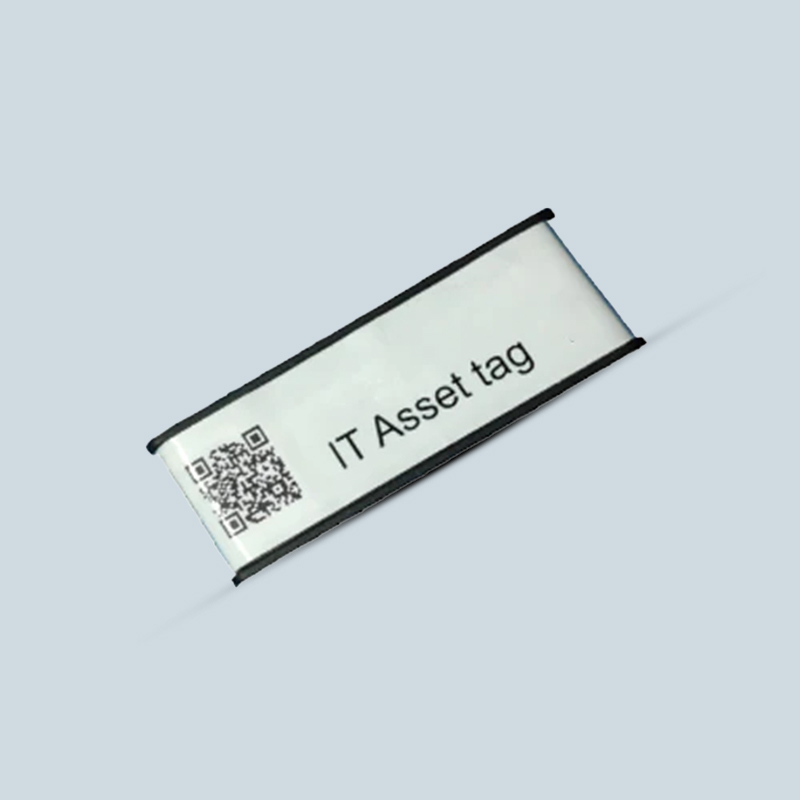

RFID IT Asset Tag (Laptops & Hard Disk)
Model No: ETS-RT 20
Description
ETS-RT 20 is an extremely powerful yet small & light weight tag specifically designed for application on laptops, hard disk and other small IT assets which are generally used in a corporate environment. This uniquely designed tag is sleek & compact in nature and can be applied to the asset without hampering its daily usage. There are multiple options to attach this tag which includes adhesive at back side (directly attach to the asset body) or hang using a nylon or cable tie tag. With a wide read range of up to 4 meters on metal body it is most suitable for application related to laptop and hard disk tracking at places like defence, corporate, labs, research centres etc. It works on global UHF 865 – 928 MHz frequency and is fully compliant with ISO/IEC 18000-6C (EPC Class 1 Gen2) standards. RFID Laptop tags manufactured by ETS are highly durable, cost effective and works seamlessly with great read range & accuracy even in the most challenging and harsh environment conditions.
These tags are used to track the movement of assets from one location to the other and to restrict it from going beyond the allowed territory. These tags can provide information related to the make & model of the asset, current user to whom it has been issued, date of issue, department, return dates, notes etc.
Customized printing for Logo, text, unique serial number, QR code, Barcode etc can also be done.
Features
865 MHz-928 MHz
ISO 18000 6C (EPC Class 1 Gen2)
Application: IT Assets and equipment
Range: Upto 4 MT*
Mount on Metal
Design: Sleek & Compact
Printing: Logo, Text
Chemical and Water Resistance
Mode of Attachment: Hang, Adhesive
Application Areas
Corporate Offices
Research Centres
IT Labs
Defence Locations
Lab Equipment
IT Assets
Hard Disk
Laptops
| Electrical Characteristics | |
| Communication ISO Protocol | ISO/IEC 18000-6C, EPC Class – 1 Gen2 |
| Operating Frequency band | 865 MHz |
| Chip type | Alien Higgs-3 (Other upon request) |
| Memory organisation | EPC–96 bits, extendible to 480bits TID – 96 bits unalterable &unique User memory – 512 bits Access password – 32 bits Kill password – 32 bits |
| Read Range | On metal – Up to 3.5m , Off metal – Up to 2m |
| Data retention | 50 Years |
| Endurance cycle | 100,000 Cycles |
| Physical Characteristics | |

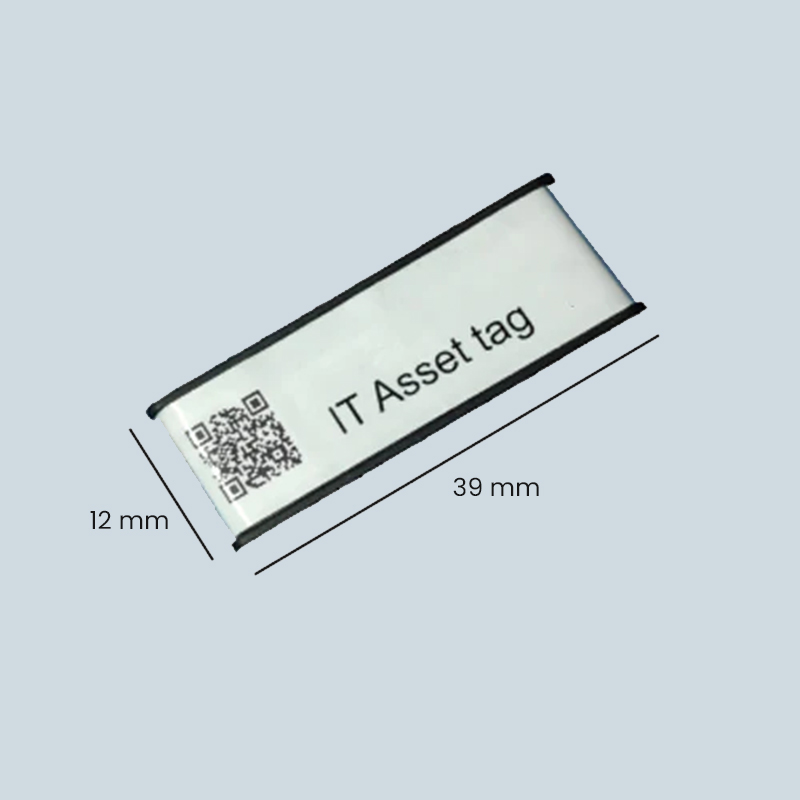

| Dimension | 39 x 12 x 3.5mm |
| Slot size | 1.5 x 17mm |
| Encasement | ABS/PC |
| Weight | 1.8 gm |
| Color | Grey (other upon request) |
| Quality Testing | 100% |
| Environmental Characteristics | |
| Ingress Protection | IP54 |
| Operating Temperature | -25°C to +85°C |
| Storage Temperature | -25°C to +85°C |
| Application | On metal |
| Attachment/ mounting | Adhesive / Cable tie |
| Chemical Characteristics | |
| Resistance to salt water exposure | No |
| Resistance to lubricant exposure | Limited |
| Resistance to IPA & thinner | Limited |
| Additional Customization | |
| Encoding | Yes |
| Logo/Text/Barcode printing | Yes |
RFID IT Asset Tag: Smarter Tracking for Your Essential Technology
Laptops, desktops, servers, printers and networking equipment are some of the valuable parts of everyday business operations. As businesses take a leap, it can be challenging to keep track of these assets across departments, offices and storage areas. RFID technology provides a practical solution to identify and manage tagged equipment more efficiently.
At Eco Track Systems, we offer RFID hardware and bespoke tracking solutions designed to help organisations enhance asset identification, record-keeping and operational visibility.
What Are RFID IT Asset Tags?
RFID tags for IT assets are electronic identification tags that are attached to equipment such as computers, monitors, servers and other technology devices. Each tag contains identification data that can be read by compatible RFID readers.
These tags can help organisations keep records of digital assets and inventory and monitor the movement of equipment when combined with the right asset management software. This reduces the need for manual identification and makes routine asset verification easier.
The tag must be suitable for the asset material, the mounting space available, the reading distance and the operating environment. RFID asset tracking system. It is important to choose compatible tags and readers to build an effective system.
RFID IT Asset Tags Applications
RFID IT asset tags help businesses to identify, track and manage equipment like laptops, servers, printers and networking devices.
Office Equipment Control
Identify laptops, desktops, monitors, printers and other office equipment to maintain organised inventory records across departments and locations.
Data Centres and Server Rooms
Assist with identification of servers, networking devices and related equipment during asset audit and maintenance activities.
IT Inventory Audits
Depending on the system configuration, RFID readers can be used to capture tag data and compare the identified equipment against existing records.
Tracking Equipment Movement
Where compatible readers and software are available, maintain records of tagged assets moving between departments, offices or storage areas.
Asset Lifecycle Management
Incorporate RFID identification with asset management systems so that they can be tracked from procurement and allocation to maintenance and retirement.
RFID Tags for EV and Charging Applications
RFID technology also enables identification in electric vehicle ecosystems. In the right application, RFID EV tags can be used to identify vehicles or link them to a compatible access or charging system. The tag type and the system design determine the identification.
Depending on the charging network and authentication set-up, an EV charging tag can be used to identify an authorised user or vehicle at a compatible charging station. The RFID-based identification and the corresponding charging management platform can be used for access control and charging session management.
It is important to select tags that fulfil the technical requirements of the charging system. Not all RFID tags work with all EV chargers, and compatibility should be checked before deployment.
Choose the RFID Solution That Meets Your Needs
Eco Track Systems can help you determine your requirements if you need RFID tags for IT assets or RFID EV tags for compatible systems. Contact ETS today to discuss your application and find the right RFID hardware for your business.
