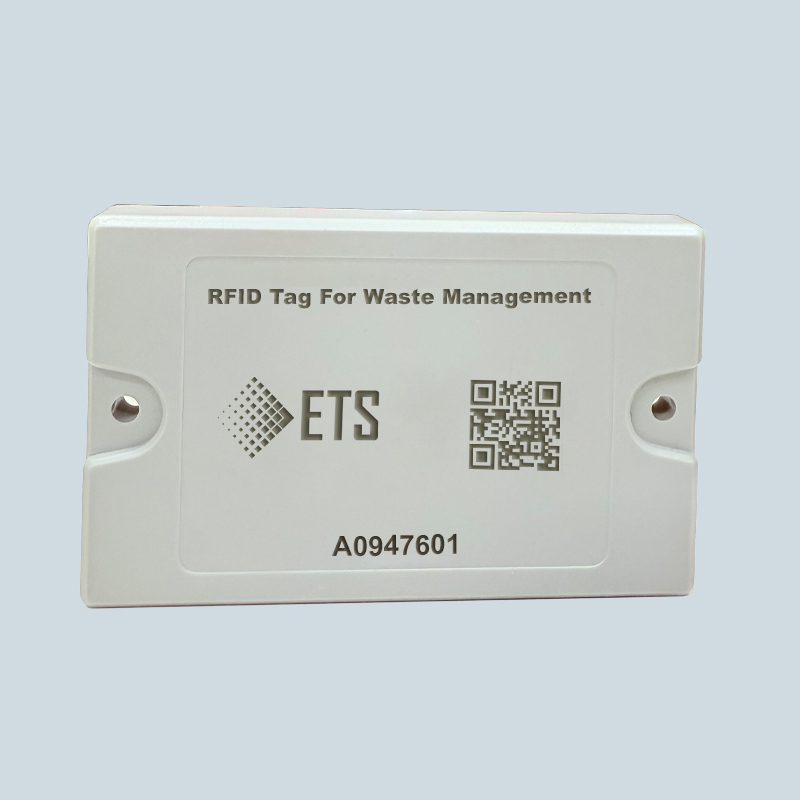

RFID Waste Management Tags for Bin Collection
Model No: ETS-RT 14
Description
ETS-RT 14 is used for household waste management application to optimise and track the collection of daily
waste and thus potentially reduce the waste disposal cost and improve the process efficiency. The tags are
attached outside the houses which are automatically scanned by the RFID readers installed on the waste
collection vehicle or by the handheld mobile devices carried by the waste collectors. The tag reading marks
the collection of waste from the respective location and transfers the data in real time to the municipal
corporation/ government servers for monitoring and analysis.
The collected data is further used by agencies to optimise the collection routes and track bin locations. Our
uniquely designed tag for waste management is 100% made in India and IP67 rated to ensure smooth
functioning and withstanding in extreme outdoor conditions like rain, dust, heat and cold temp. The tag can
be fixed on the concrete/metal base using nail/rivet method. ETS-RT 14 is available in NFC (Mifare 13.56 MHz)
and UHF (865 - 928 MHz) frequency depending on the requirement of the project. The tag can be fully
customized based for printing logo, QR Code, Tag chip ID etc.
ETS-RT 14 is currently being used at more than 2.75 lakh households across India for various smart city waste
collection initiatives.
RFID Waste Management Tags are 100% at par with the norms laid down by the municipal corporations for waste collection process.
We also offer end to end solution which includes RFID Handheld Readers and mobile software application for
the RFID Based Waste Collection Solution.
Features
IP67
Highly Durable
Outdoor Use
UHF/NFC
Water Resistent
Chemical Proof
ID, Logo, Text etc.
50 Years Data Retention
Make in India
Application Areas
Wasre Management
Bin Tracking
Household Waste Collection
Hospital Asset TrackingMuncipal Corporation / Government
Smart City Waste Management Initiative
Waste Management / Collection Agencies
| Operating Frequency band | NFC 13.56MHz | UHF 865 MHz or 928 Mhz |
| Chip type | Mifare NFC | Alien Higgs-3 |
| Communication ISO Protocol | ISO/IEC 14443-3 (Type A) | ISO/IEC 18000-6C, EPC C1 G2 |
| Memory organisation | 1kB 16 sectors, with 4 blocks per sector 64blocks, with 16 bytes per block | EPC–96 bits, extendible to 480bits TID – 96 bits unalterable &unique User memory – 512 bits Access password – 32 bits Kill password – 32 bits |
| Read Range | Upto 5 cm with NFC Enabled Smart Phone | Fixed Reader – Up to 9m Handheld Reader – Up to 7m |
| Data retention | 50 Years | |
| Endurance cycle | 100,000 Cycles | |
| Size | 50mm x 80mm x 7mm | |
| Hole size | Dia 5mm | |
| Encasement | Engineering Plastic | |
| Weight | 18 gms | |
| Color | Grey, Black, White | |
| Quality Testing | 100% | |
| Ingress Protection | IP67 | |
| Operating Temperature | -25°C to +85°C | |
| Storage Temperature | -25°C to +85°C | |
| Application | On & Off metal both | |
| Attachment/ mounting | M5 Screw or rivet | |
| Resistance to salt water exposure | Yes | |
| Resistance to lubricant exposure | Yes | |
| Resistance to IPA & thinner | Yes | |
| Encoding | Yes | |
| Logo/Text/Barcode printing | Yes |
RFID Waste Management Tag: Smarter Identification for Cleaner, More Efficient Operations
Accurate records and a well-organised collection process are essential for the management of waste collection within residential areas, commercial buildings and industrial facilities. RFID technology makes this job easier because compatible readers can identify tagged bins, containers and waste collection assets.
At Eco Track Systems, we manufacture RFID hardware and custom tracking solutions to enable identification, automation and traceability in different industries. RFID solutions help waste management teams improve data collection and bring more visibility to daily operations.
What Are RFID Waste Management Tags?
RFID waste management tags are electronic identification tags which are attached to waste bins, containers or other assets involved in the collection and management of waste. Each tag may also include a unique identification number that is used by compatible RFID readers to identify the associated asset.
Combined with the right software, these tags can help document collection activities, monitor the movement of assets and maintain digital records of waste management activities. Specific features differ by tag type, reader configuration and software used.
RFID waste management tags are application-based and can be used for waste collection systems that require consistent identification at multiple locations.
Uses of RFID Solid Waste Management Tags
RFID technology can be used by municipalities, waste collection services and facility management teams to organise their waste management processes.
City Waste Collection
Place the waste bins with tags in the collection areas you want and use the RFID equipment that can go with them to keep track of the collections.
Domestic & Commercial Waste Removal
Assistance in identifying bins in housing societies, office complexes, shopping centres and other managed properties.
Industrial Waste Management
Identify containers and waste management assets in industrial premises, and help teams keep operational records organised.
Route Monitoring
RFID systems, with the right readers and software, can assist in recording bin identification at collection points and supporting route-related reporting.
Waste Asset Identification
Assign bins and containers unique identities to ease asset records, improve traceability and facilitate maintenance planning.
Advantages of RFID Waste Management Tags
The RFID technology presents practical benefits for organisations that handle large quantities of waste containers.
- Improved identification: Give each bin and container a distinct identity to facilitate tracking.
- Better data collection: Use compatible RFID readers to capture identification data, not just manual input.
- Better traceability: Keep records of collection activities and tagged asset movement where the system supports.
- Organised operations: Use digital records to support reporting, planning and day-to-day waste management
- Flexible integration: Link RFID hardware with the right software platforms for your operations.
To help ensure reliable identification during daily collection activities, a suitable RFID system should be tested under actual operating conditions.
Enhance Waste Monitoring Using RFID Technology
Want to improve the identification and traceability of your waste collection process? If you are looking to discuss your RFID waste management tag requirements and find a suitable solution for your operations, get in touch with Eco Track Systems today.
