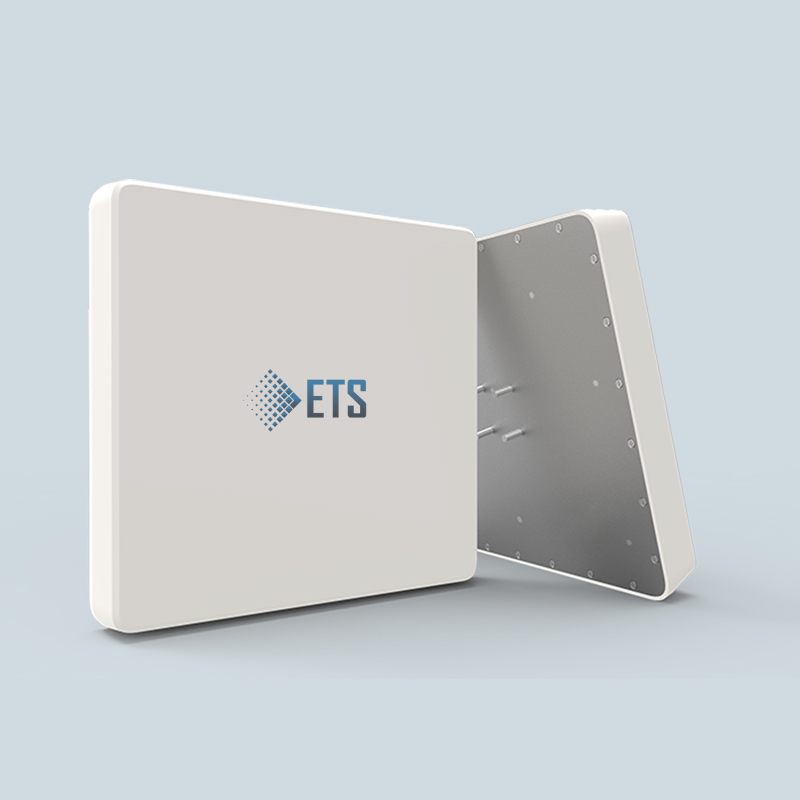

ETS-IR 04 is our most powerful industrial grade RFID UHF Reader available in the Integrated Reader series. It is powered by Impinj Chipset which provides excellent read range specially for applications related to Parking, ETC and Toll Plaza Management. The device has an inbuilt 9dbi circular antenna which is fine tuned to read FASTAGS without cross lane reading or tailgating issues. Its unique design is IP 66 rated and best fit for outdoor extreme weather conditions. This reader supports LAN, RS232, RS485, Wiegand, GPIO interface via which data is transmitted to connected system . ETS-IR 04 is capable to read up to 600 tags in a mili second and hence is also suitable for projects where accuracy and read range are of prime concern. For example reading tagged items on conveyor belts, moving assets on a trolley / fork filter, fast moving vehicles, employee movement tracking in manufacturing area and attendance management.
Firmware Upgrade | Demo software / Telnet |
API Support | Windows – .NET, C++ and Java SDK
Android – Java Linux platform – C and Java SDK |
Physical Characteristics | |
Weight | Main body 1.4Kgs |
Dimensions | 276mm×276mm×40mm |

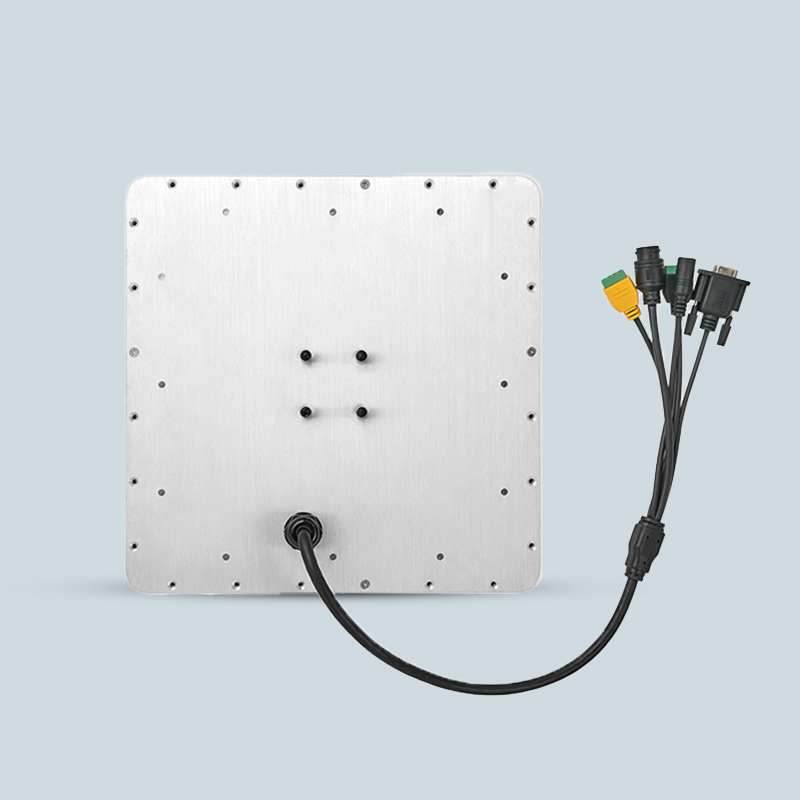

Housing Material | Aluminum plate / ABS cover |
Physical Characteristics | |
Air Protocols | ISO/IEC18000-6B,6C / EPC C1Gen2 |
Frequency | USA: 902 MHz-928MHz (FCC part 15)
EU: 865-868MHz (ETSI EN 302208) CN: 920-925MHz (CMIIT) |
Chipset | Impinj R2000/Impinj E510/ E710 |
Programming Functions | Automatic reading/ White list
Breakpoint Resume / Match reading / Data filter Data format customizable (PLC / Modbus compatible) RF Micron / EM Temperature sensor custom Services |
Supportable /Optional | Russian / Japan / Korea / Malaysia / Thailand / other customizable |
Built-in antenna | Circular 9dBi, VSWR ≤ 1.2:1 |
Output Power | 0dBm-30dBm (±1dBm) adjustable |
Channel bandwidth | >200KHz |
Reading Distance | 0-15m (According to Tag & Environment |
Anti-collision | RSSI / multi-tag / intensive inventory supportable |
Work Mode | Fixed/hop frequency optional |
Connectivity | |

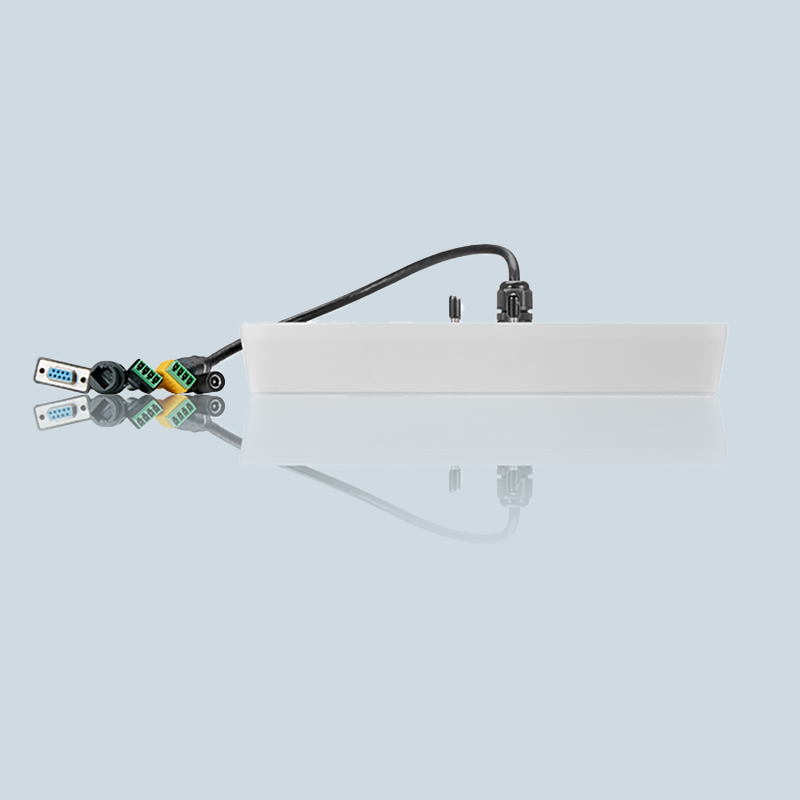

Communications | RJ45, RS-232, RS-485, Wiegand |
General Purpose I/O | 1 optcoupler input, 1 pair 5V output or Wiegand output |
Power supply | (Wiegand output is shared with 5V output) |
Environmental | |
Operating Temp. | -30-+70°C |
Storage Temp. | -40-+85°C |
Humidity | 5-90% non-condensing (+25℃) |
Sealing | IP66 |
