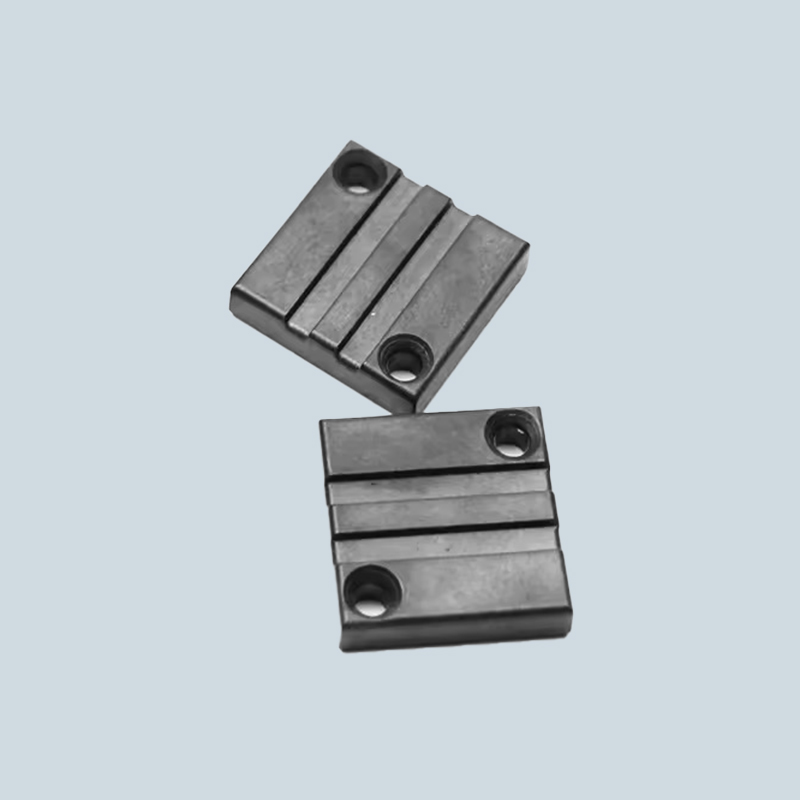

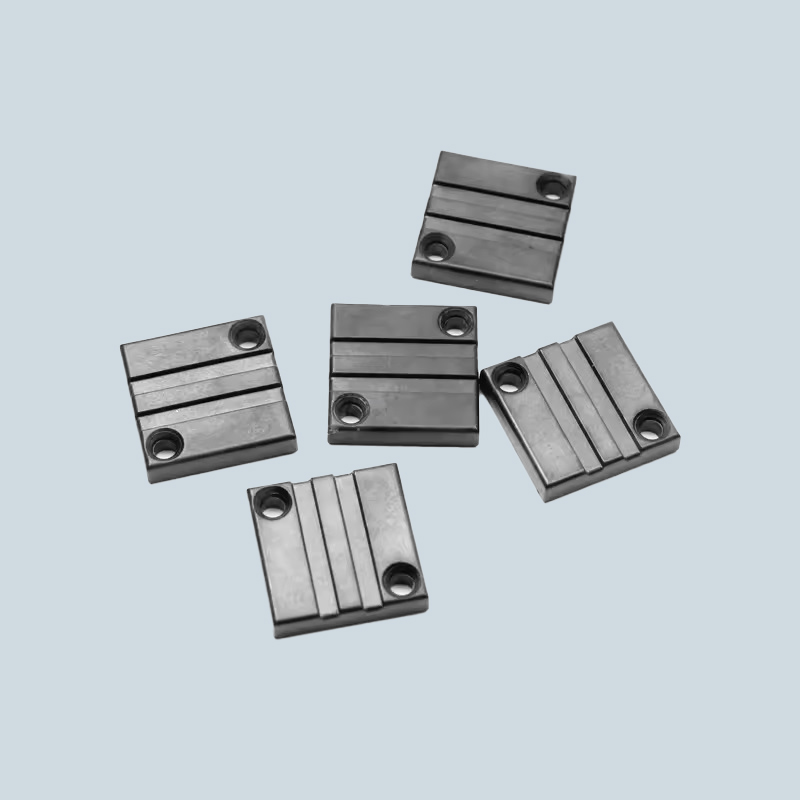

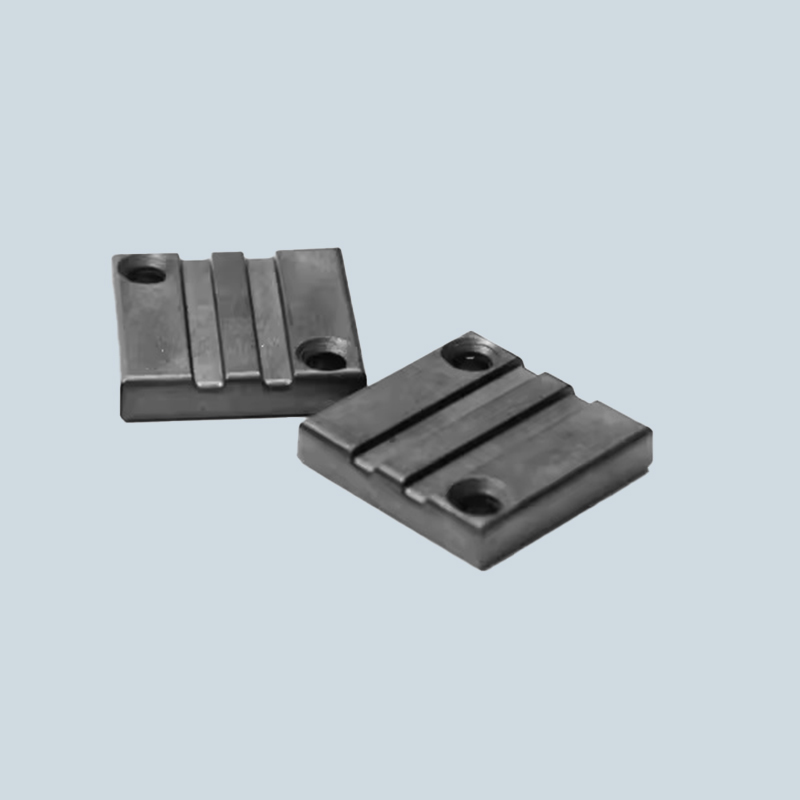

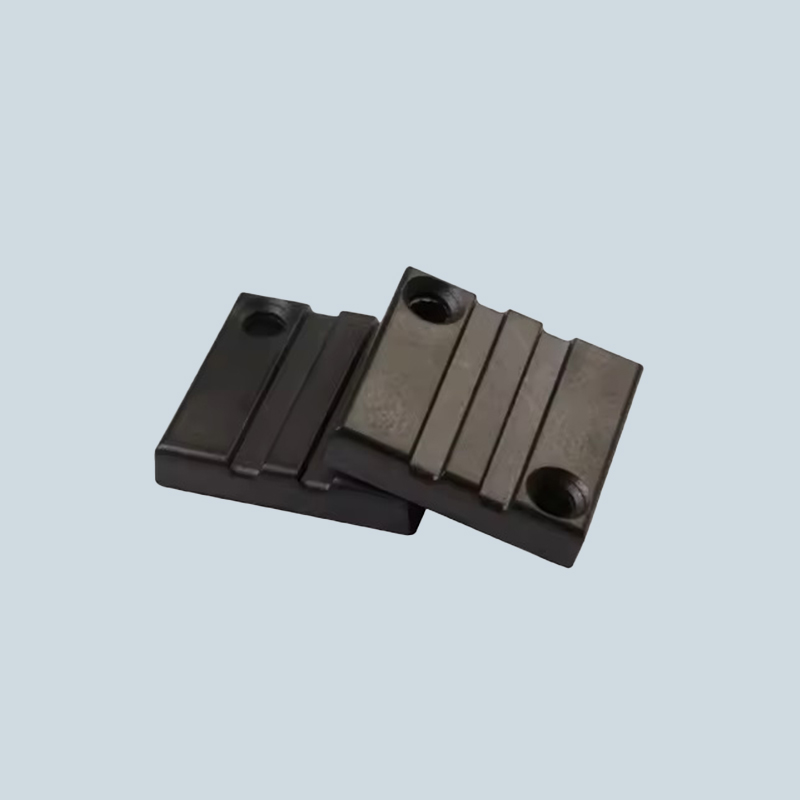

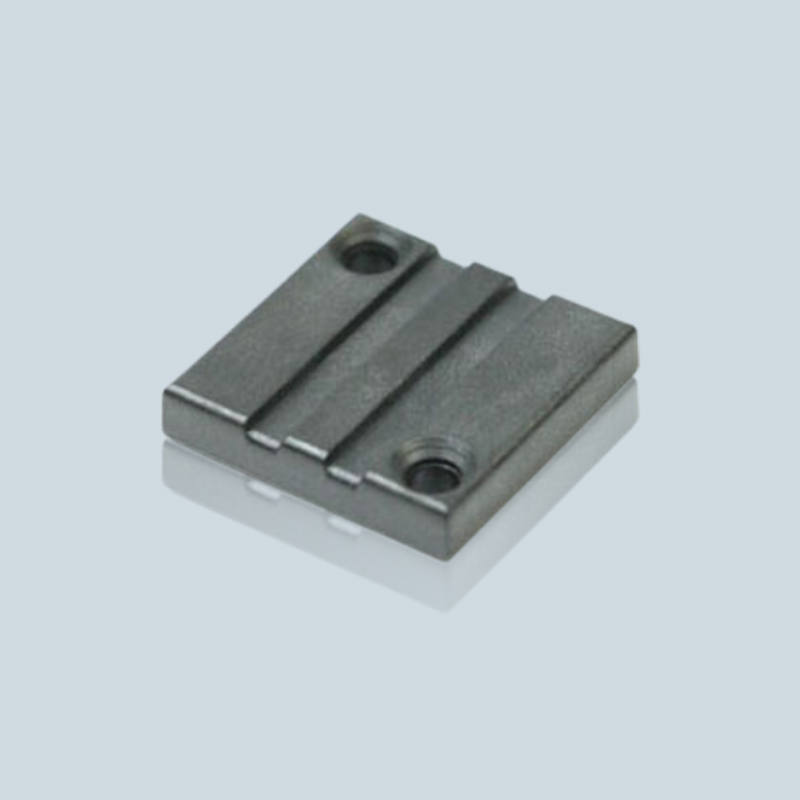

Anti Acid Alkali On-Metal RFID Tag
Model No: ETS-RTAA 2626
Features
865 MHZ-928 MHz
EPC Class 1 Gen2 ISO 18000-6C
Upto 230°С
IP68
Read Range: Upto 260cm
Alien Higgs-3
Compact Size & Light Weight
Data Retention 50 Years
Mounting Methods
Chemical & Water High Temperature Resistant
Shock & Vibration Resistent
Custom Laser Printing
Application Areas
Oil and Gas
Automobile
Chemical & Paints
Injection Molding & Die Casting
Sterilization in medical & hospital
| Functional Specifications | |
| Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | (US) 902-928MHz, (EU) 865-868MHz |
| IC type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 times |
| Functionality | Read/write |
| Data Retention | 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal): (Fix Reader) | 260cm - (US) 902-928MHz; 250cm - (EU) 865-868MHz, On metal 130cm - (US) 902-928MHz; 120cm - (EU) 865-868MHz, Off metal |
| Read Range(On Metal): (Handheld Reader) | 190cm - (US) 902-928MHz; 150cm - (EU) 865-868MHz, On metal 100cm - (US) 902-928MHz; 90cm - (EU) 865-868MHz, Off metal |
| Warranty | 1 Year |
| Physical Specification | |
| Size | 26x26mm, (Hole: D4mmx2) |
| Thickness | 5.5mm |
| Material | PPS shell, PCB Antenna |
| Colour | Black |
| Mounting Methods | Adhesive, Screw, binding |
| Weight | 6.6g |
| Environmental Specification | |
| IP Rating | IP68 |
| Withstands Exposure To | Fuel B, mineral oil, petroleum, salt mist, vegetable oil; |
| Storage Temperature | -40°С to +100°С (230°С for 30 minutes, 180°С for 120minutes) |
| Operation Temperature | -40°С to +100°С |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
