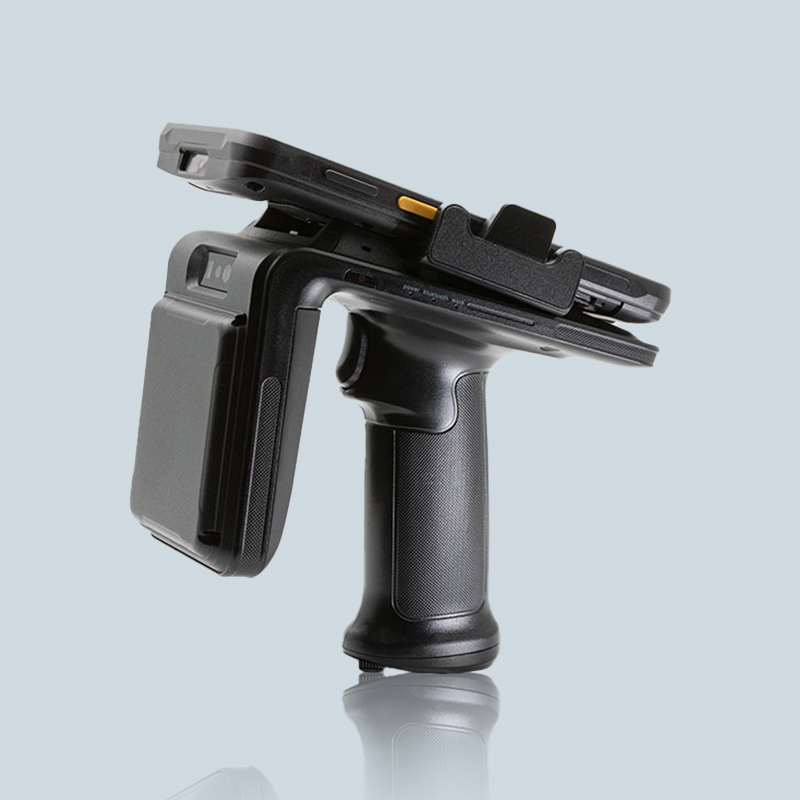

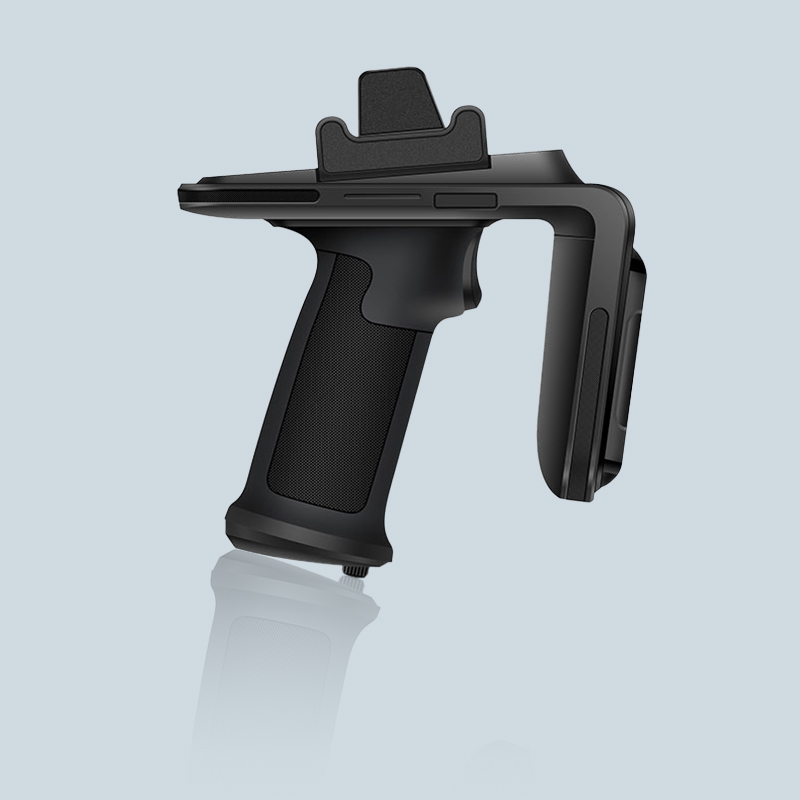

Bluetooth Sled Reader
Model No: ETS-RH6
Description

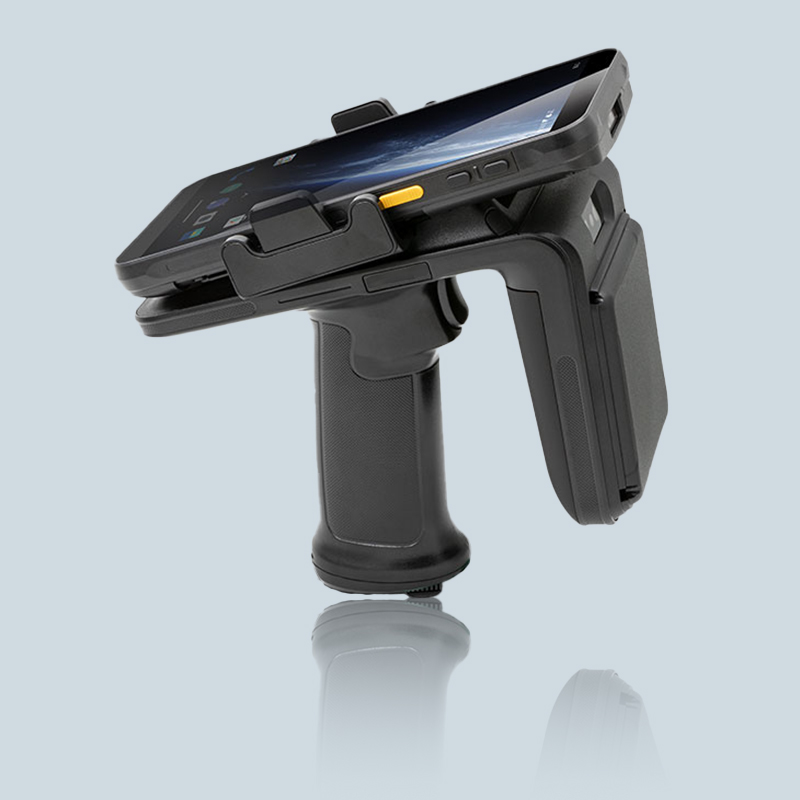

ETS-RH6 is an extremely powerful industrial grade RFID UHF Sled Reader which can be connected to the mobile phone through Bluetooth connectivity and can turn into a full fledged RFID Handheld machine. With a built in Impinj R2000/ E710 chipset, it has a read range of Upto 30 meters and can identify tagged objects with great accuracy and speed.
Features
Read Range: Up to 30 Meter*
5200 mAh. Standby time: 70 hours
1D/2D Barcode
Read Rate: 1300 tags/second
UHF 865 - 928 MHz
Light Weight Design: 438 grams
Android /IOS
Bluetooth: BLE 5.0
inbuilt LED & Buzzer
Application Areas
Warehouse
Apparel
Jewellery Tracking
Asset Management
Production
Toll Plaza
| Physical Characteristics | |
| Dimensions | 151 x 76 x 132 mm / 5.94 x 2.99 x 5.19 in. |
| Weight | Sled Reader: 438 g / 15.45 oz. |
| Colour | Black |
| Power | Battery specification: 5200 mAh removable battery Standby: over 70 hours (keeping bluetooth connected) Continuous use: up to 2.5 hours (UHF reading: 400 tags) Charging time: 4-5 hours (with standard adaptor and USB cable) |
| Interfaces | USB 3.0 Type-C |
| Buzzer | Support |

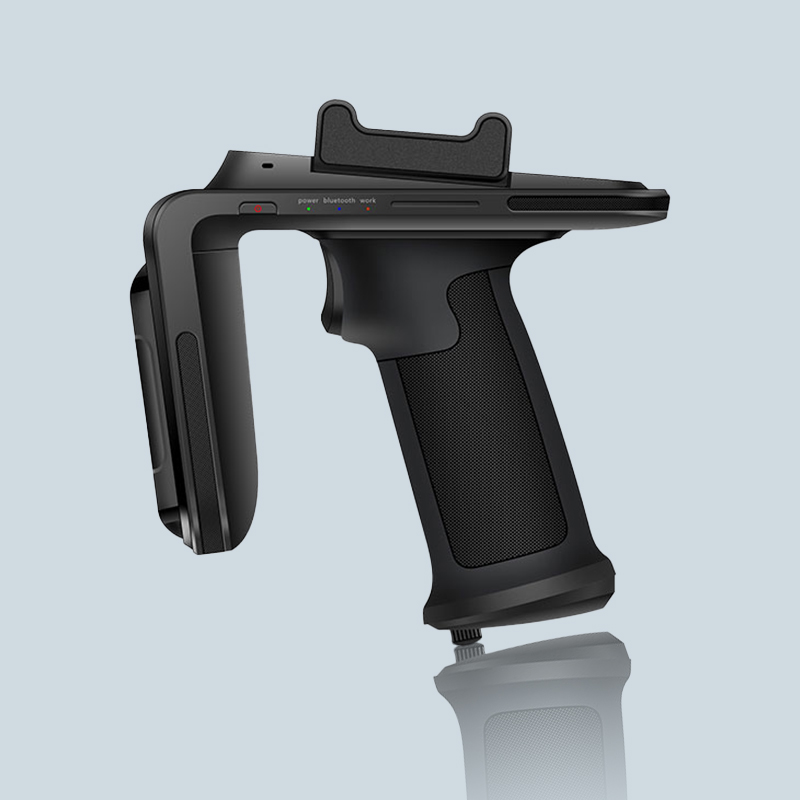

| Indicator LED | Power, Work, Bluetooth |
| Product material | Plastic |

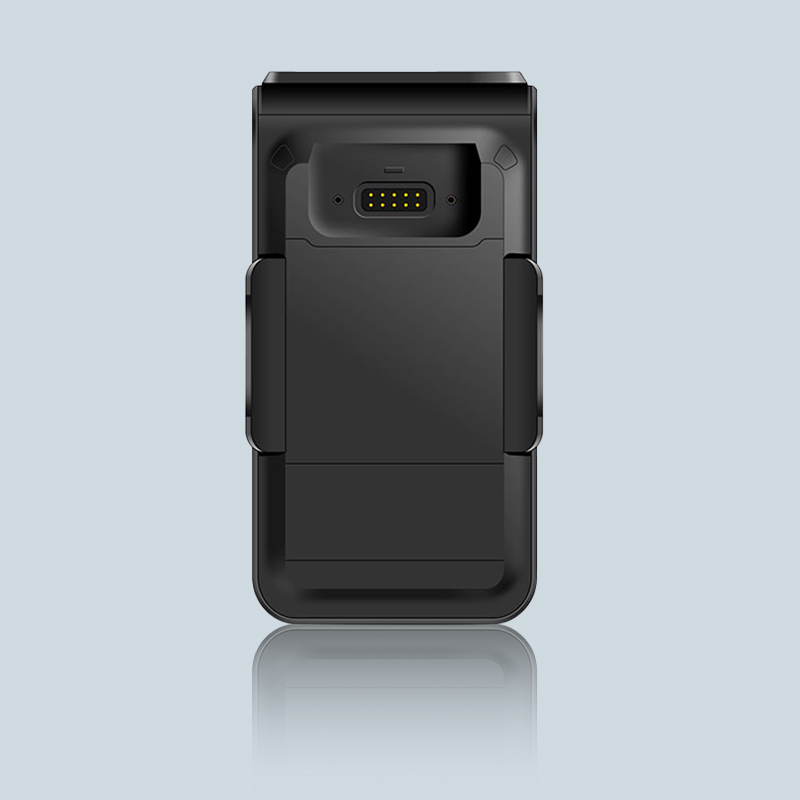

| Size of adapted phone | Sled Reader: Width 68~80 mm, thickness: within 22 mm Others: Based on phone case or holder |
| User Environment | |
| Operating Temp. | -4 °F to 122 °F / -20 °C to 50 °C |
| Storage Temp. | -40 °F to 158 °F / -40 °C to 70 °C |
| Humidity | 5%RH - 95%RH non condensing |
| Tumble Specification | 1000 x 0.5 m / 1.64 ft. falls at room temperature |
| Drop Specification | Multiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range |
| Sealing | IP54 per IEC sealing specifications |
| ESD | ±15 KV air discharge, ±8 KV conductive discharge |
| Developing Environment | |
| SDK | Android / IOS |
| Tool | Android Studio / Xcode |
| Language | Java / Objective-C |
| Data Collection | |
| Engine | CM710-1 module based on Impinj E710 CM2000-1 module based on Impinj Indy R2000 |
| Antenna Parameter | Circular Polarized Antenna (4dBic) |
| Frequency | 920-925 MHz / 902-928 MHz / 865-868 MHz |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Power | 1W (30dBm, support +5~+30dBm adjustable) 2W Optional (33dBm, for Latin America, etc.) |
| Max Read Range | Impinj E710 chip 30m (Impinj MR6 tag, size 70 x 15mm) 28m (Impinj M750 tag, size 70 x 15mm) 31m (Alien H3 Anti-Metal tag, size 130 x 42mm) Impinj R2000 chip: 25m (Impinj MR6 tag, size 70 x 15mm) 26m (Impinj M750 tag, size 70 x 15mm) 25m (Alian H3 Anti-Metal tag, size 130 x 42mm) |
| Fastest Read Rate | 1300+ tags/sec |
| Performance | |
| MCU | Cortex-M3, 72MHz |
| Communication | |
| Bluetooth | Bluetooth Low Energy (BLE) 5.0 |
| Barcode Scanning (Optional) | |
| 2D Imager Scanner | SE2707 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC 39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
