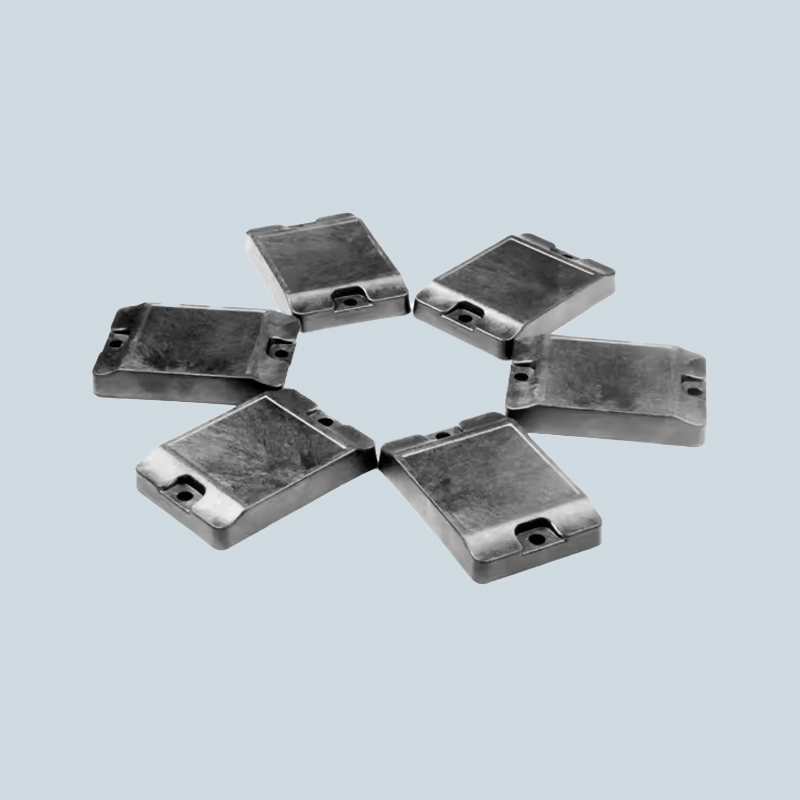

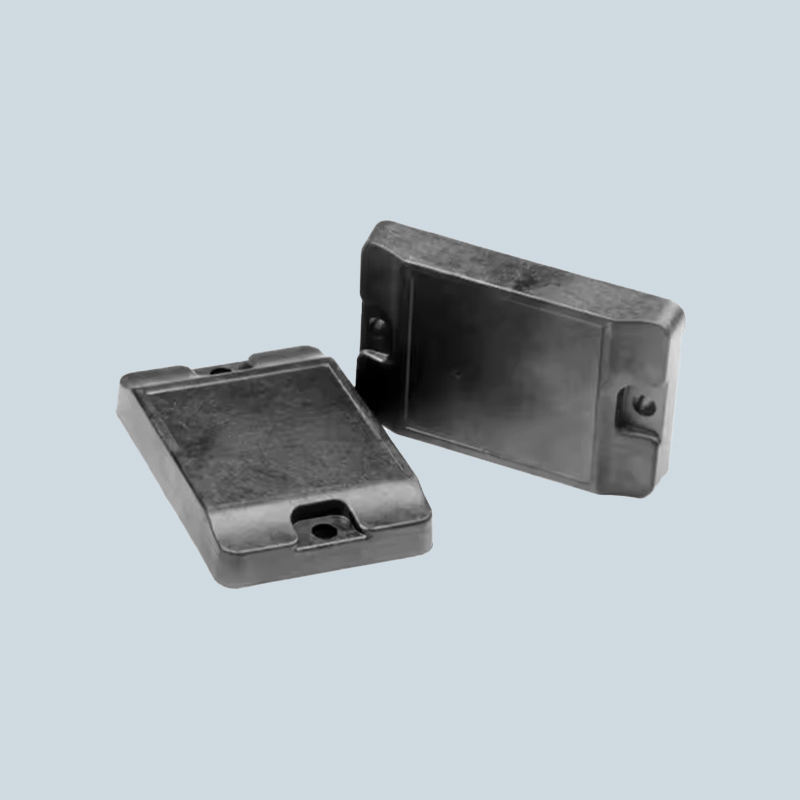

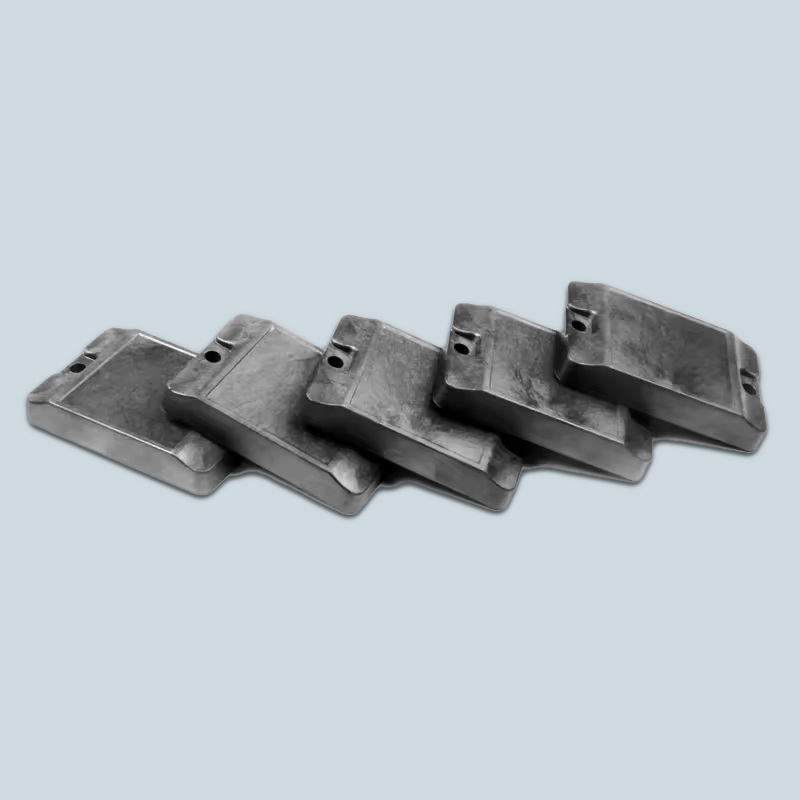

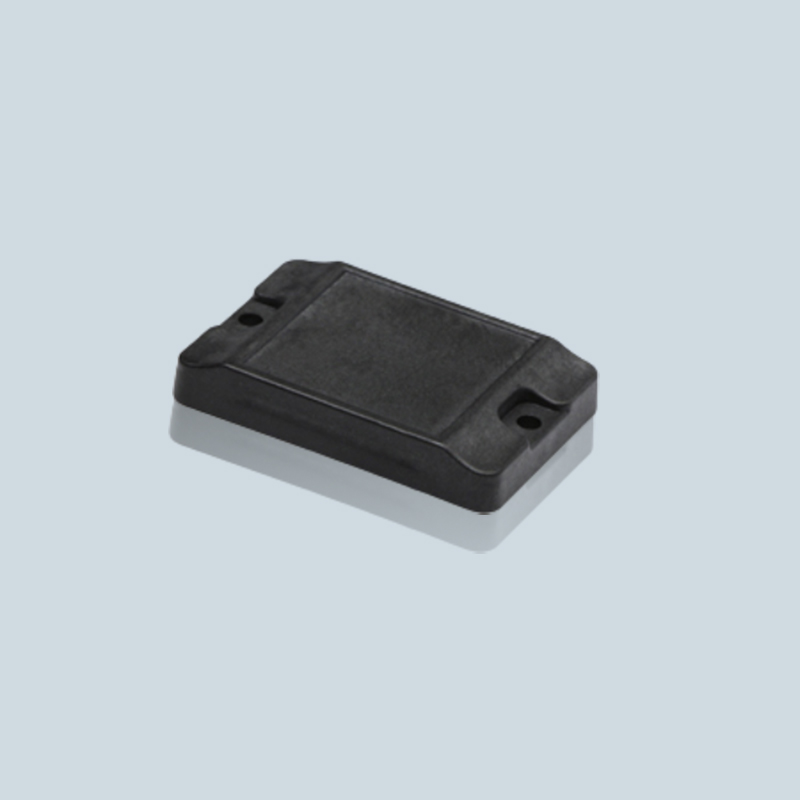

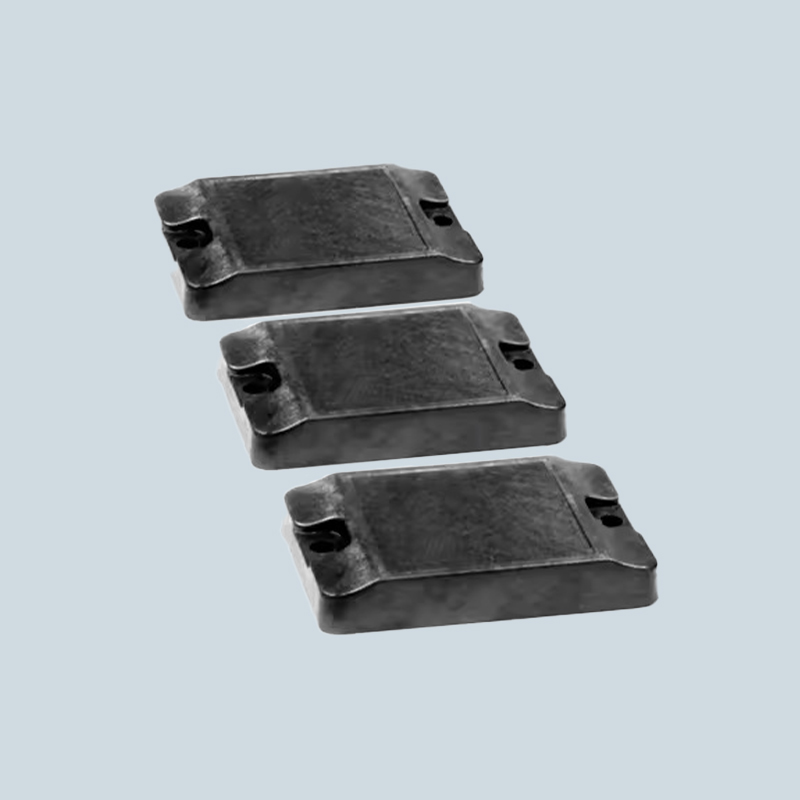

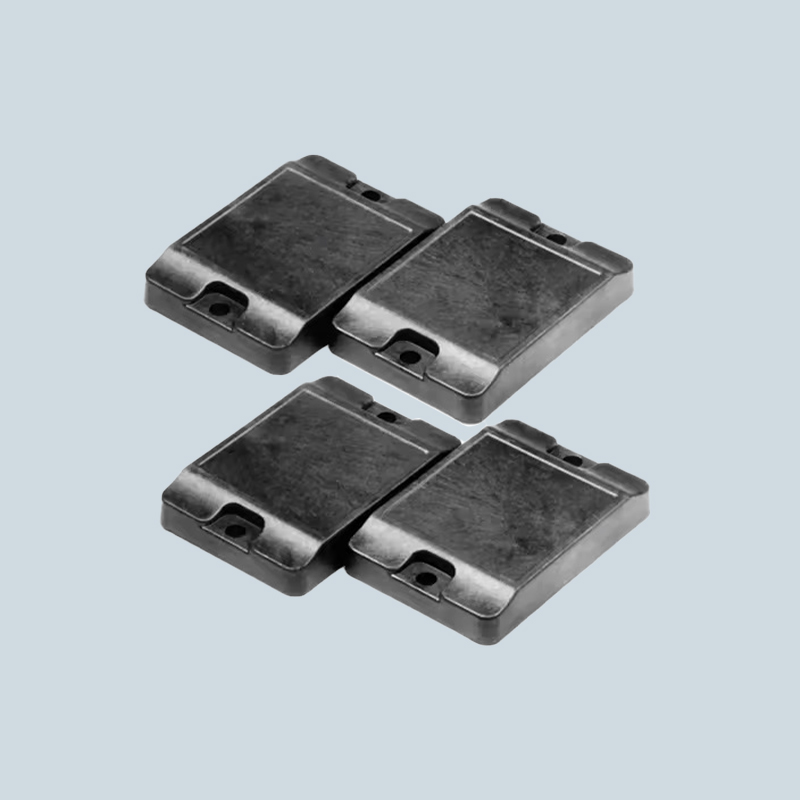

Concrete Embedded RFID Tag
Model No: ETS-RTCT 4601
Features
865 MHZ-928 MHz
EPC Class 1 Gen2 ISO 18000-6C
Data Retention 50 Years
IP68
Read Range: Upto 260cm
Alien Higgs-3
Compact Size & Light Weight
Mounting Methods
Chemical & Water High Temperature Resistant
Shock & Vibration Resistent
Custom Laser Printing
Application Areas
Concreate Slabs for flyover and tunnels
Underground Pipeline Tracking
Construction Industry
Joint Tracking
Oil and Gas
| Functional Specifications | |
| Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | (US) 902-928MHz, (EU) 865-868MHz |
| IC type | Alien Higgs-3, (Monza M4QT, Monza R6, UCODE 7XM+ or other chips are customizable) |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000 times |
| Functionality | Read/write |
| Data Retention | 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal): (Fix Reader) | 6.5m, US(902-928MHz) 6.6m, EU(865-868MHz) |
| Read Range(On Metal): (Handheld Reader) | 4.4m, US(902-928MHz) 4.6m, EU(865-868MHZ) |
| Reading range when embedded | 2.2m, US(902-928MHz) |
| 5cm depth in concrete: (Handheld Reader) | 2.1m, EU(865-868MHZ) |
| Reading range when embedded | 2.0m, US(902-928MHz) |
| 10cm depth in concrete: (Handheld Reader) | 1.9m, EU(865-868MHz) |
| Warranty | 1 Year |
| Physical Specification | |
| Size | 46.5x31.5mm, Hole:D3.6mmx2 |
| Thickness | 7.5mm |
| Material | PPS |
| Colour | Black |
| Mounting Methods | Embedded in concrete |
| Weight | 22g |
| Environmental Specification | |
| IP Rating | IP68 |
| Storage Temperature | -40°С to +150°С |
| Operation Temperature | -25°С to +100°С |
| Certifications | Reach Approved, RoHS Approved, CE Approved, ATEX Approved. |
