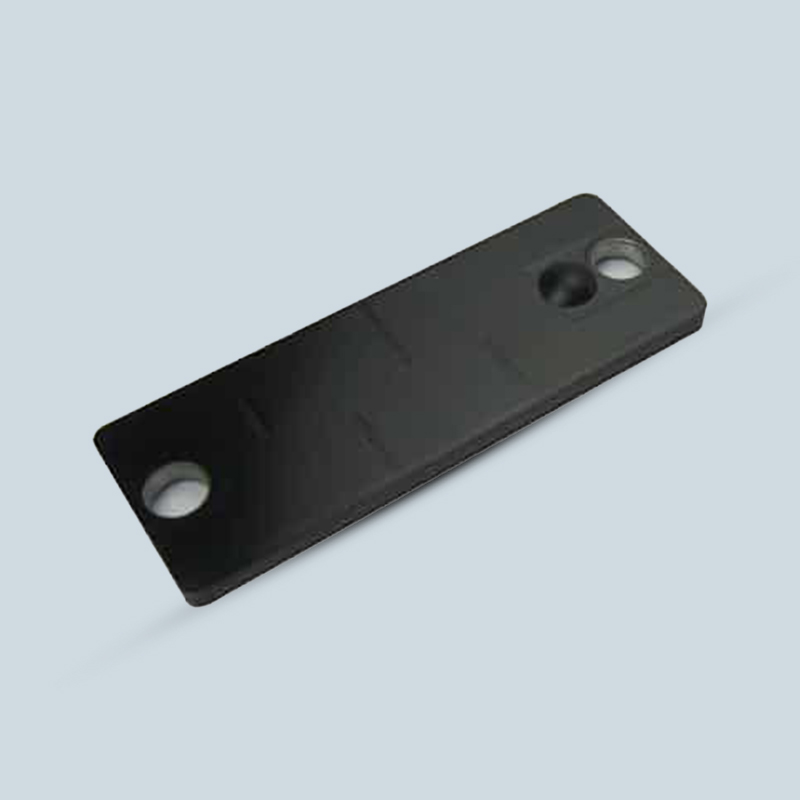

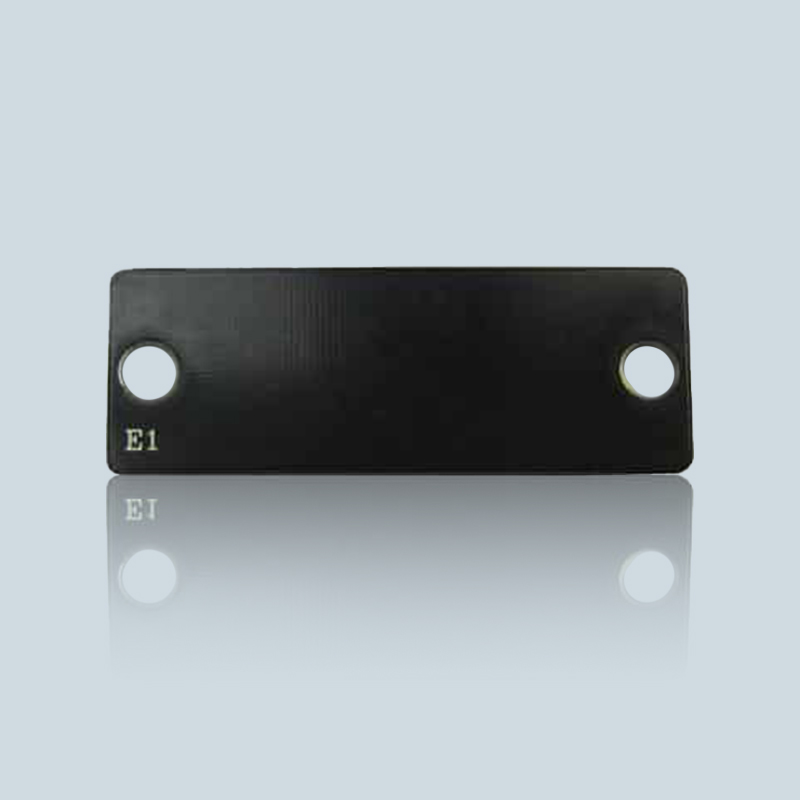

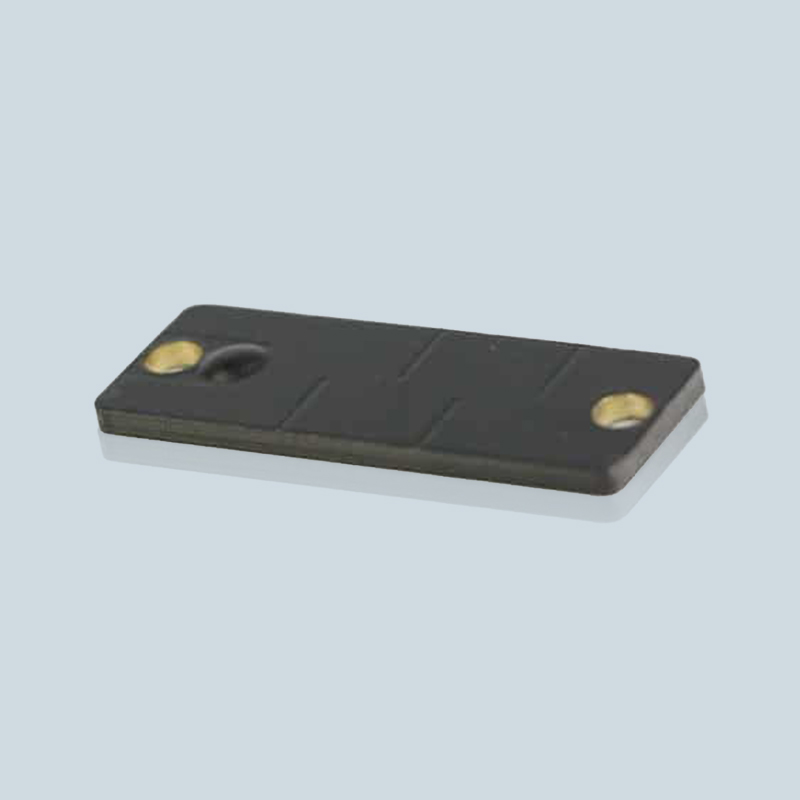

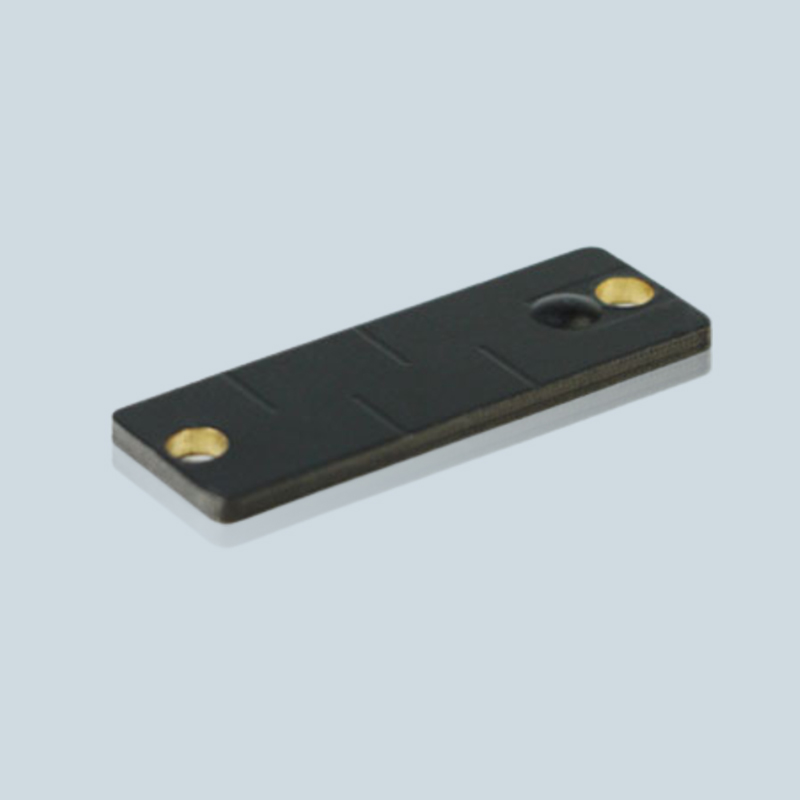

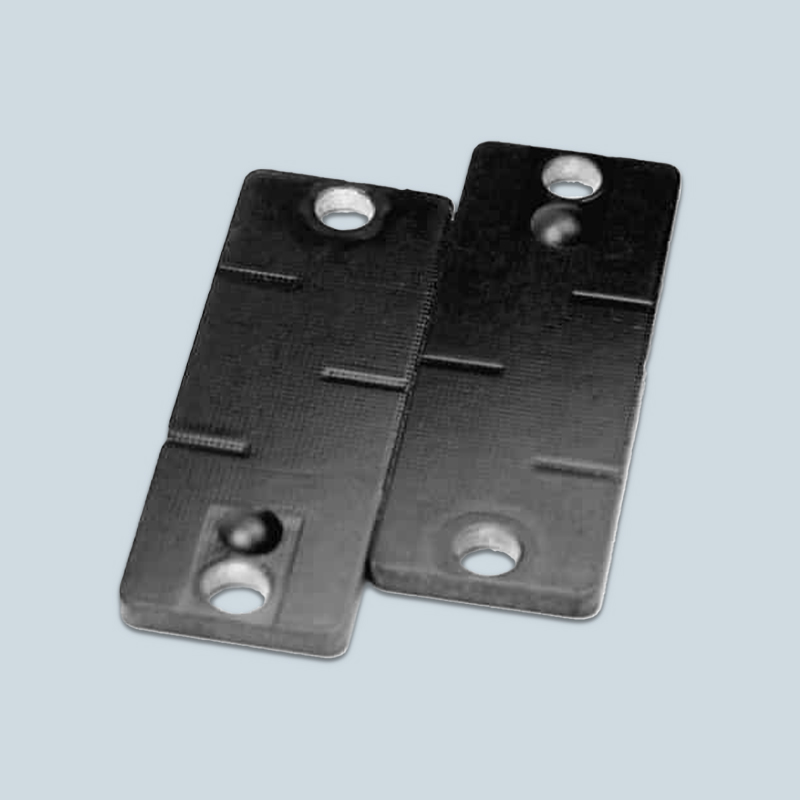

High Temperature on-metal RFID Tag
Model No: ETS-RTHT 4215
Features
865 MHz-928 MHz
EPC Class 1 Gen2 ISO 18000-6C
Upto 260°С
IP68
Read Range: Upto 700cm
Alien Higgs-4
Compact Size & Light Weight
Data Retention 50 Years
Mounting Methods
Chemical & Water High Temperature Resistant
Shock & Vibration Resistent
Custom Laser Printing
Application Areas
Oil and Gas
Automobile
Chemical & Paints
Injection Molding & Die Casting
Sterilization in medical & hospital
| Functional Specifications | |
| Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | (US) 902-928MHz, (EU) 865-868MHz |
| IC type | Alien Higgs-4 |
| Memory | EPC 128bits, USER 128bits, TID64bits |
| Write Cycles | 100,000 times |
| Functionality | Read/write |
| Data Retention | 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal): (Fix Reader) | 680cm - (US) 902-928MHz, on metal 700cm - (EU) 865-868MHz, on metal |
| Read Range(On Metal): (Handheld Reader) | 530cm - (US) 902-928MHz, on metal |
| Read Range(On Metal): (Handheld Reader) | 530cm - (US) 902-928MHz, on metal 550cm - (EU) 865-868MHz, on metal |
| Warranty | 1 Year |
| Physical Specification | |
| Size | 42x15mm, (Hole: D4mmx2) |
| Thickness | 2.1mm without IC bump, 2.8mm with IC bump |
| Material | PTFE |
| Colour | Black |
| Mounting Methods | Adhesive, Screw |
| Weight | 2.2g |
| Environmental Specification | |
| IP Rating | IP68 |
| Storage Temperature | -55°С to +200°С (280°С for 50 minutes, 250°С for 150minutes) |
| Operation Temperature | -40°С to +150°С (working 10hours in 180°С) |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
