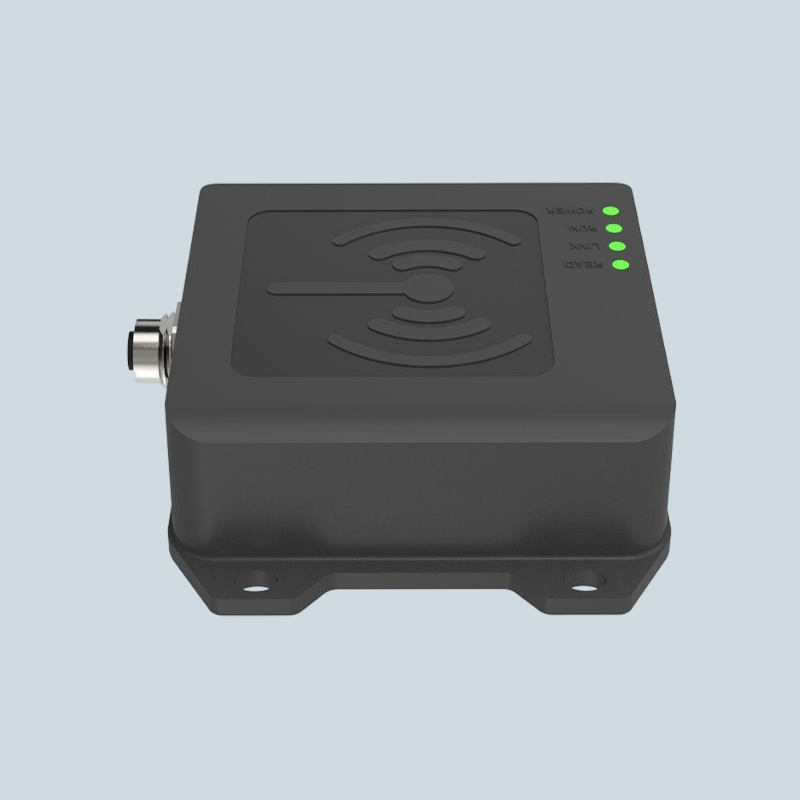

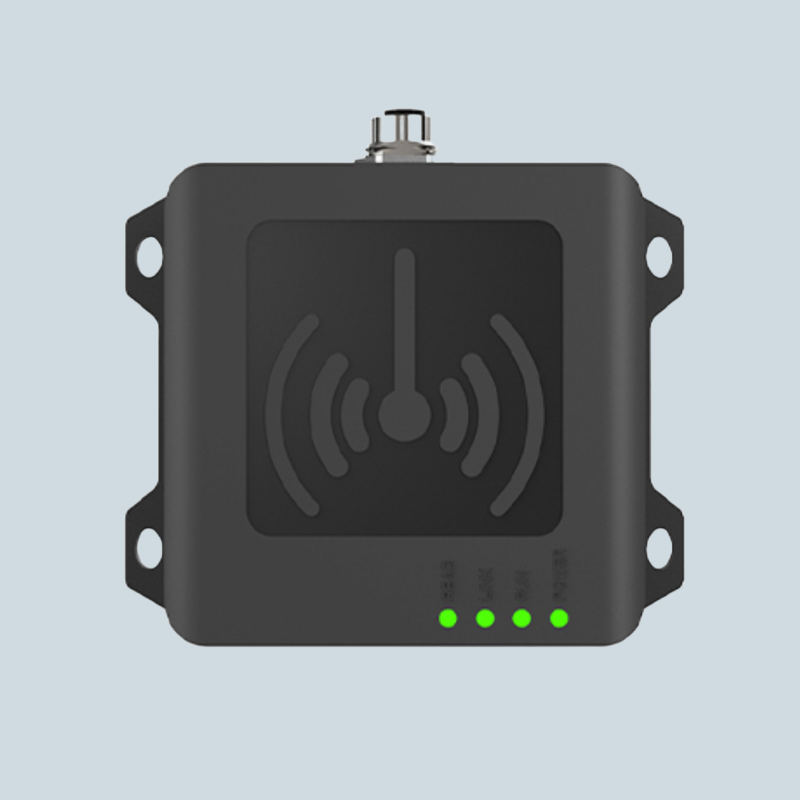

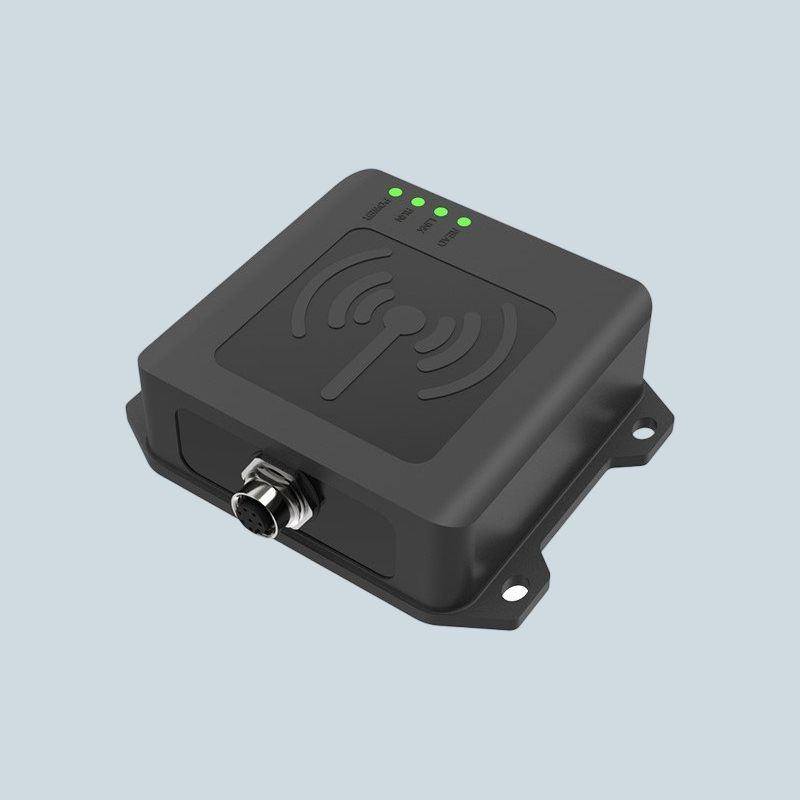

Industrial UHF Reader
Model No: ETS-IR 03
Description
ETS-IR 03 is an extremely rugged and industrial grade UHF Integrated reader designed for applications which require high precision in tracking the movement of goods in production line specially on conveyor belts. The device fully supports modbus communication via which it can easily be integrated to third party controllers and PLC's.
It can easily be mounted in production line areas due to its compact design and IP67 protection rating. ETS-IR 03 is fully compatible with 865 - 928 Mhz UHF RFID Tags and provides excellent read range of upto 2 meters which can be controlled by configuration software based on the specific requirement of the project
Features
UHF 865-928MHz
ISO18000-6C(EPC GEN2)
IP67
Compact & Rugged Design
LED & Buzzer
Industrial Use
Application Areas
Warehouse
Inventory Tracking
Manufacuturing
| Name & Model | Industrial UHF Reader (ETS-IR 03) Most suitable for related to asset tracking with high precision in production and applications on conveyor belt |
| Air interface agreement | EPC Global UHF class1 Gen2/1S0 18000-6C |
| Frequency Range | 865-928 MHz |
| RF output power | 0 - 33 dBm (adjustable) |
| Maximum receiving sensitivity | -75 dbm; Maximum return loss: 10 dbm |
| Reading distance | Upto 2 Meters |
| Number of antennas | Built-in 5dbi antenna |
| Communication Interface | RS232, RS485, Rj45, P0E (optional) |
| Protocol support | Modubus / Profinet |
| Communication rate | Serial communication rate 9600~115200bps, RJ45 communication rate 10/100Mbps |
| Work status display mode | 4 LED indicator, buzzer |
| GPIO | 2 sets of trigger signal input, 2 sets of relay signal output |
| SDK | VB, Python, Java, Delphi, c# etc |
| Size | 115 (length) * 95 (width) * 35(height) mm |
| Power supply | Working voltage DC9-24V |
| Packed weight | 450g |
| Humidity | 5% ~ 95%, non-condensing |
| Protection level | IP67 |
| Operating temperature | -40°C ~ 70°C |
| Storage temperature | -40°C ~ 85°C |

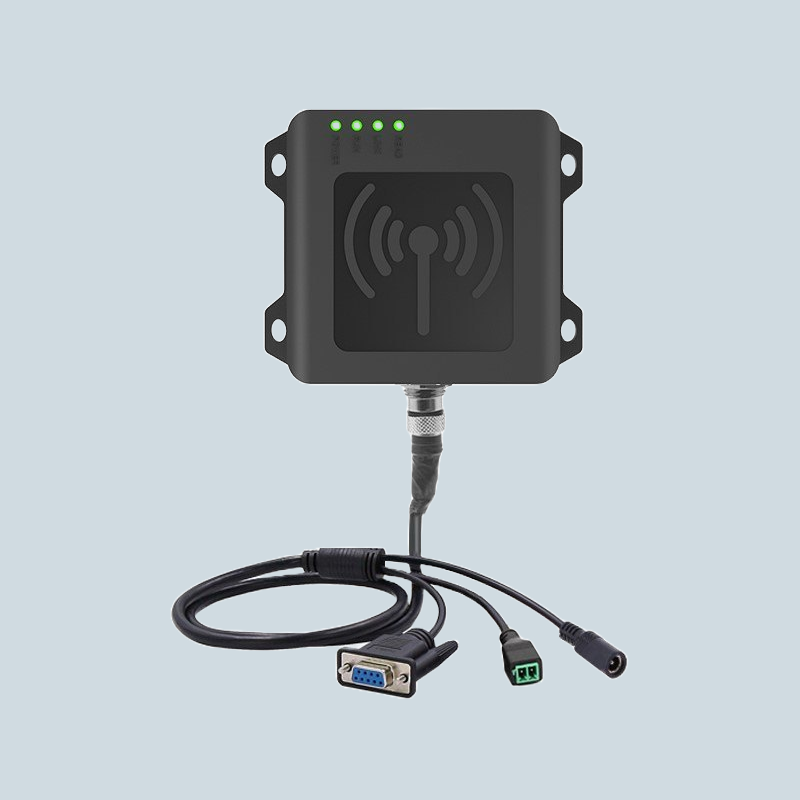

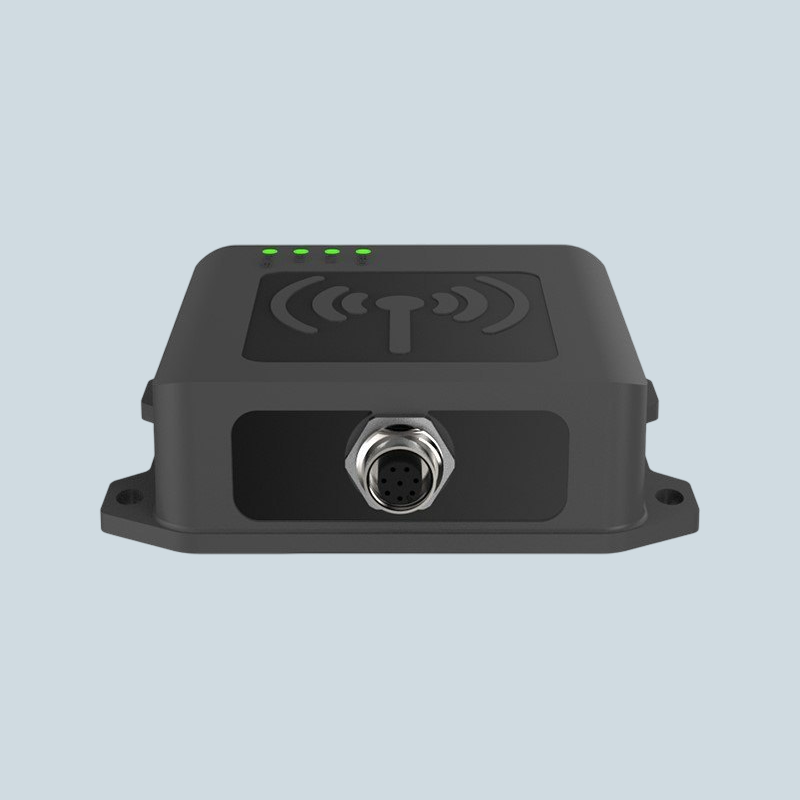

| Connector type | Round waterproof M12 pin female seat |
