Eco Track Systems

LED Hard Metal Tag

Model No: ETS-RT 15A

Description

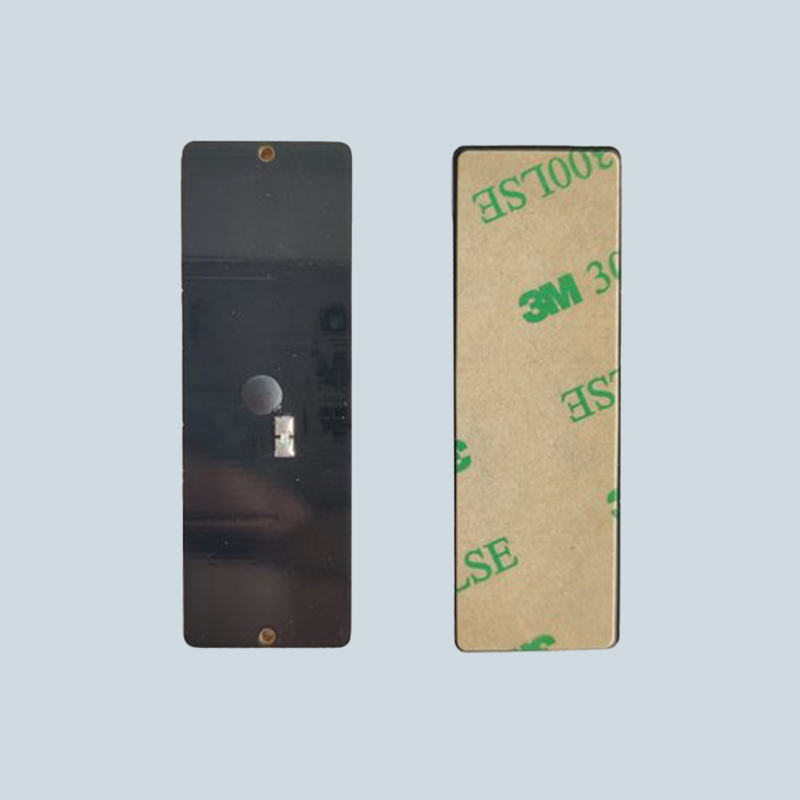

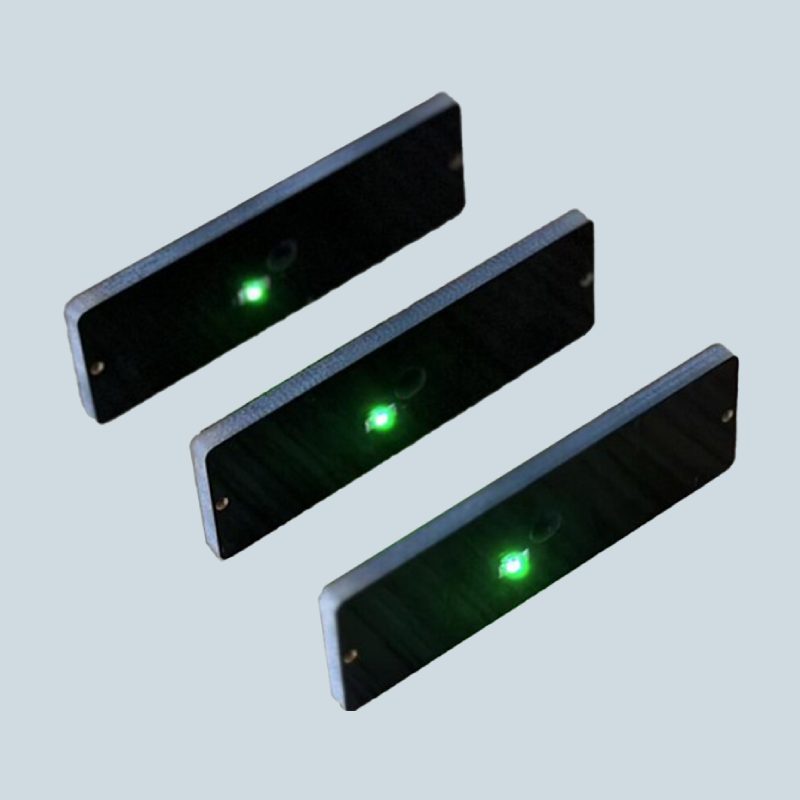

ETS-RT 15A is specialized PCB based radio-frequency tag that integrates LED lights with traditional UHF RFID technology. These tags are designed primarily for applications such as inventory management and asset tracking, providing not only identification but also visual indicators through LED lights. The tags are used in combination of handheld readers. The EPC/TID number of the specific tag is entered in the handheld reader to search its location. On reading the tag, the LED illuminates and provides visual identification along with tracking. These tags are best used to search misplaced items in the warehouse or production envirobment. The range of this tag extends to up to 7 meters when used in handheld reader. For attaching the tag to the asset you can opt for 3M industrial adhesive or rivet method. This sleek PCB tag is best suitable for harsh environment where the assets are prone to wear -tear and exposure to high temperature and chemicals.

Key Features

865 MHz-928 MHz

ISO 18000-6C Gen2

Range Upto 7 MT

Inbuild LED

On Metal Application

Sleek Design

Passive Tag

Rivet/Adhesive

Application Areas

Warehousing

Oil and Gas

Supply Chain

E-Commerce

Asset Tracking

Production

IT/ITES

Technical Specification

Size60mm x 20mm x 3mm
FaceStock or HousingProtection Ink Overlay
InstallationAdhesive
Antenna TypeCopper Antenna
TechnologyMicrostrip Flat Style
Backing Liner3M467 Self-Adhesive Liner
CharactersOn Metal Use
ProtocolISO18000-6C GEN2
Operating Frequency902-928MHz
MemoryTID/UID Upto 192bit+ EPC/Block Upto 240bit+ User 1312bit + Reserve 64bit
Reading RangeUpto 7meters
Applicable SurfaceOn metal
OptionCustom color printing(Embossing or laser-engraving) with barcode or text & personalization encoding
Data EEPROM Retention10years
ESD Limited Voltage2KV
Operating Temperature-35°C - 85°C
Storage Temperature0°C - 25°C
Relative Humidity10%-95%(Variant Performance)
