Eco Track Systems

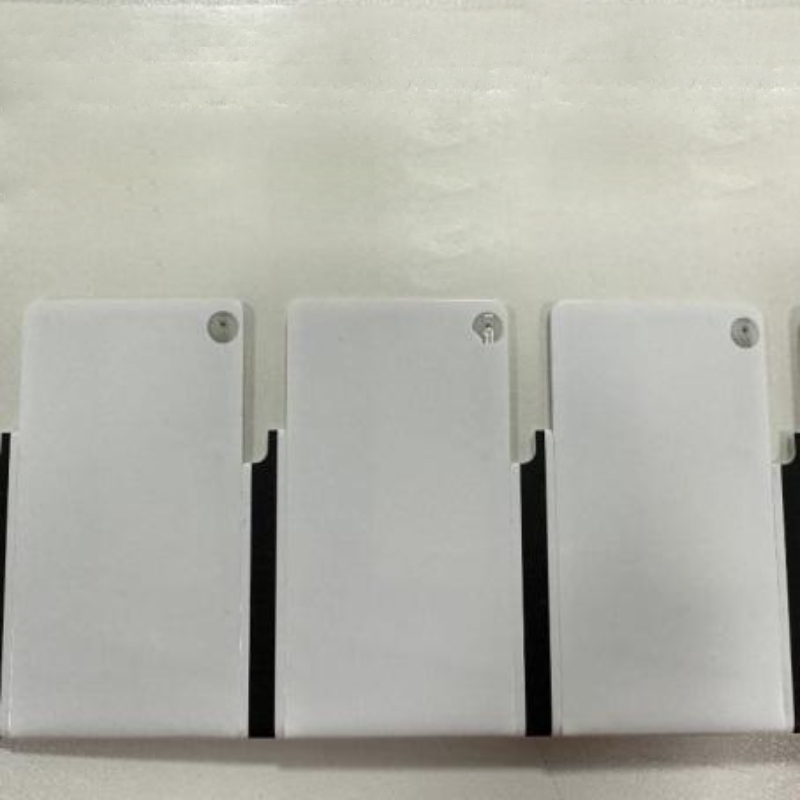

LED Soft Metal Tag

Model No: ETS-RT 15B

Description

ETS-RT 15B is a soft RFID meal tag with integrated LED primarily used for applications related to tracking and visual identification of assets. The tags are used in combination of handheld readers. The EPC/TID number of the specific tag is entered in the handheld reader to search its location. On reading the tag, the LED illuminates and provides visual identification along with tracking. These tags are best suitable for data centres, hospitals and hotels for asset auditing applications. The tag is backed by strong 3M adhesive which when applied to on/off metal provides a read range of upto 3-4 meters with handheld reader.

Key Features

865 MHz-868 MHz

ISO 18000-6C Gen2

Range Upto 3-4 MT

Inbuild LED

On Metal Application

Sleek Design

Passive Tag

3M Adhesive

Application Areas

Warehousing

Production

Hotel Asset Auditing in Rooms

Hospital Asset Tracking

Data Centres for Hard Disk Tracking

Technical Specification

Size65mm x 35mm x 1.35mm
FaceStock or HousingPET/Printable White PET
InstallationAdhesive
Antenna TypeAluminum Antenna
TechnologyFoam Style
Backing LinerWhite Glassine Paper Liner
CharactersGeneral/On Metal Use/LED Reminded
ProtocolISO18000-6C GEN2
Operating Frequency865-868MHz
MemoryTID/UID Upto 192bit+ EPC/Block Upto 240bit+ User 1312bit+
Reserve 64bit
Reading Range200cm (depends on reader)
Applicable SurfaceAir-free/On Metal
OptionCustom color printing(Embossing or laser-engraving) with
barcode or text & personalization encoding
AdditionalLED Red
Data EEPROM Retention10 years
ESD Limited Voltage2KV
Operating Temperature-35°C - 85°C
Storage Temperature0°C - 25°C
Relative Humidity10%-95%(Variant Performance)
