PCB UHF On Metal RFID Tag
Model No: ETS-RT PCB Series
| Model No | Dimension | Read Range | Weight |

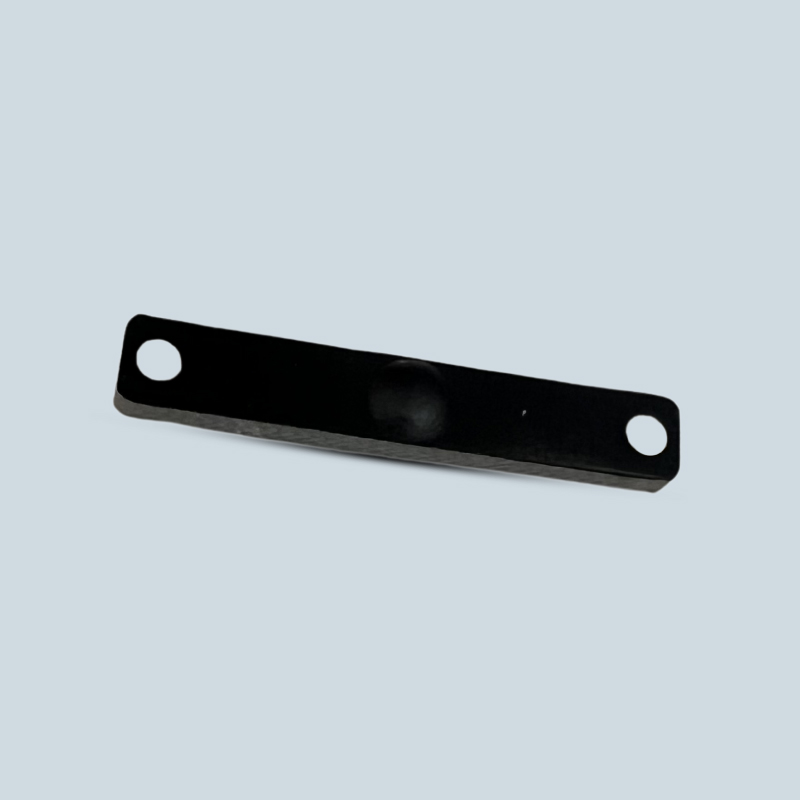

| ETS-RT PCB 3005 | 33mm x 10mm x 3.5mm, (Hole: D2mm) | Upto 4.2 Meters | 3.0g |

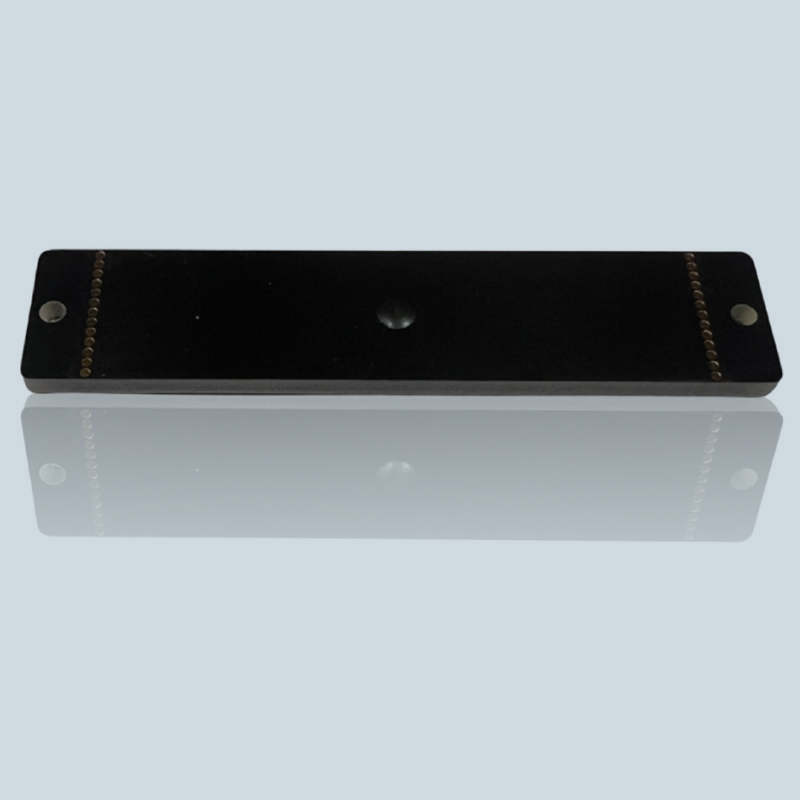

| ETS-RT PCB 9020 | 90mm x 20mm x 3.0mm, (Hole: D3mm) | Upto 10. 8 Meters | 12.0g |

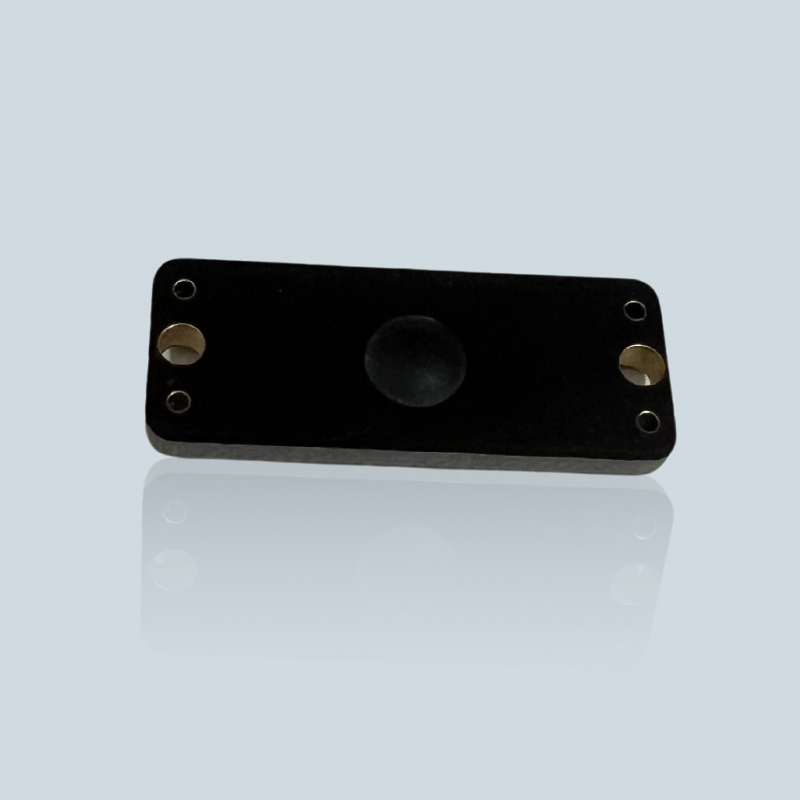

| ETS-RT PCB 2510 | 25mm x 10mmx2.0mm, (Hole: D2mm x 2) | Upto 325 cm | 1.5g |

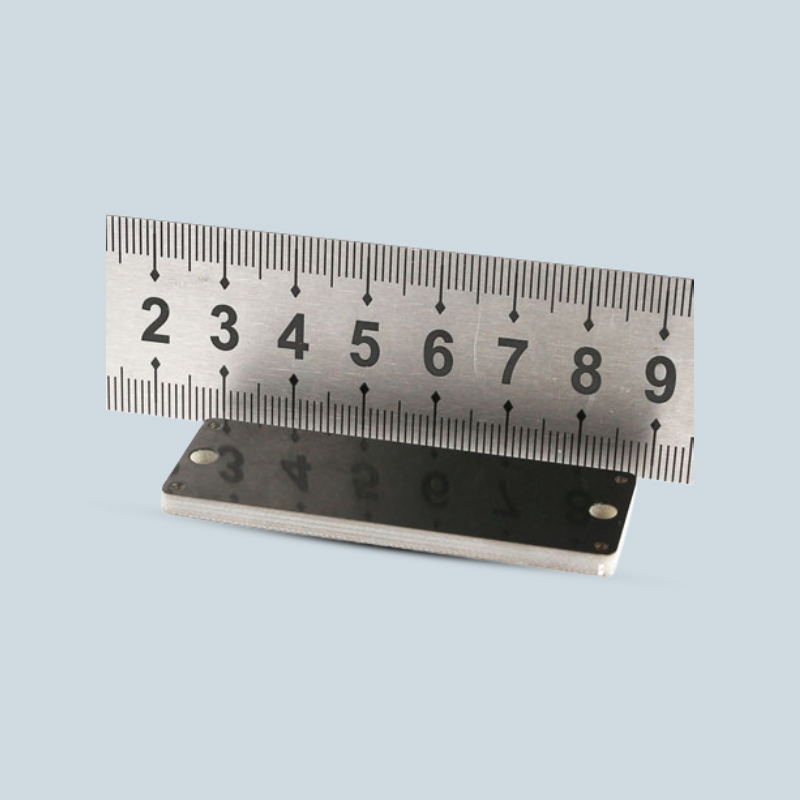

| ETS-RT PCB 6020 | 60mm x 20mm x 3.5mm, (Hole: D3.5mm x 2) | Upto 9 Meters | 8.5g |

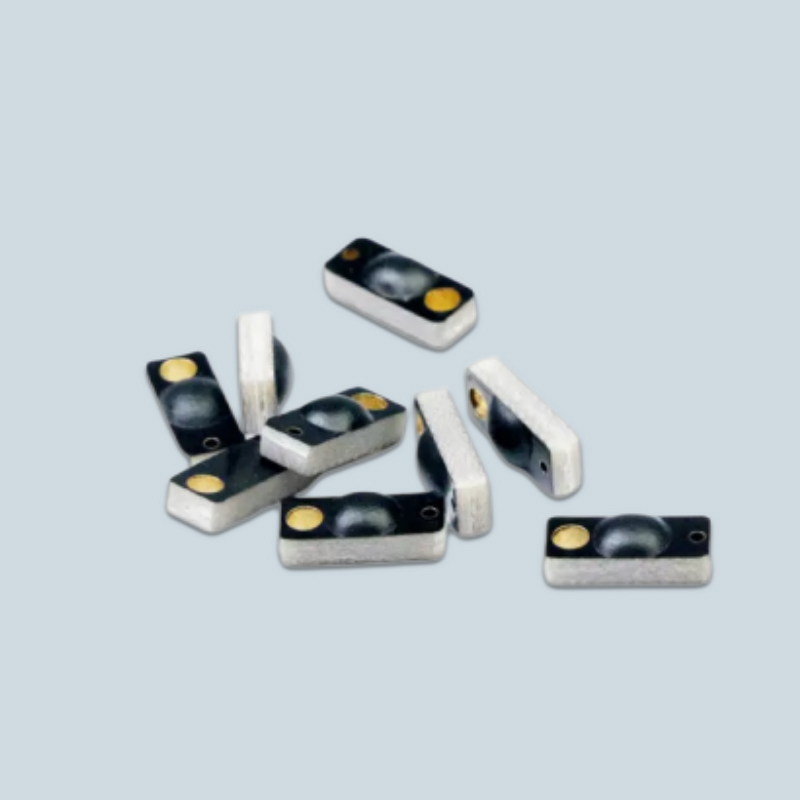

| ETS-RT PCB 63 | 6.0mm x 3.0mm x 2.0mm | Upto 85 cm | 0.5g |

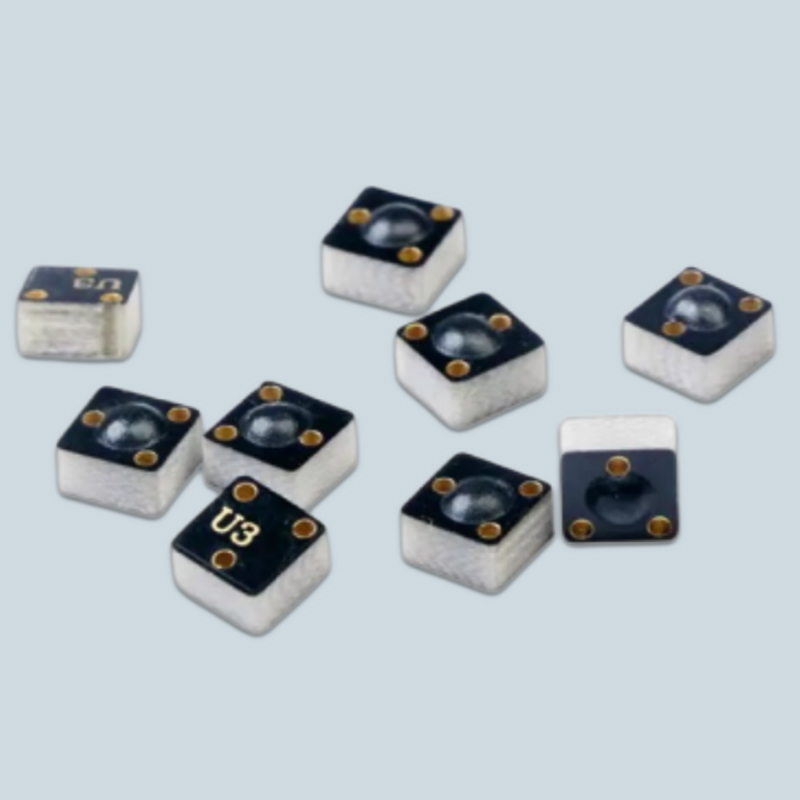

| ETS-RT PCB 66 | 6mm x 6mm x 3.0mm | Upto 110 cm | 0.5g |
| ETS-RT PCB 154 | 15.0mm x 4.0mm x 2.0mm, (Hole: D2mm x 2) | Upto 2.2 Meters | 0.7g |
Features
865 MHz - 928MHz
EPC Class 1 Gen2 ISO 18000-6C
Data Retention Upto 50 Years
IP68
Custom Laser Printing
Compact Size & Light Weight
Mounting Methods Adhesive, Screw
Chemical & Water High Temperature Resistant
Shock & Vibration Resistent
Application Areas
Asset Tracking
Tool Tracking
Logistics and Warehouse
Healthcare
Retail
Cylinder Management
Power Industry
| Functional Specifications | |
| Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | (US) 902-928MHz, (EU) 865-868MHz |
| IC type | Alien Higgs-3/NXP UCODE8 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000times |
| Functionality | Read/write |
| Data Retention | Up to 50 Years |
| Applicable Surface | Metal Surfaces |
| Warranty | 1 Year |
| Physical Specification | |
| Material | Fr4 (PCB) |
| Colour | Black (Red, Blue, Green, White) |
| Mounting Methods | Adhesive, Screw |
| Environmental Specification | |
| IP Rating | IP68 |
| Storage Temperature | -40°С to +150°С |
| Operation Temperature | -40°С to +100°С |
| Certifications | Reach Approved, RoHS Approved, CE Approved |
