| Electrical Characteristics | |
| Communication ISO Protocol | ISO/IEC 18000-6C, EPC Class – 1 Gen2 |
| Operating Frequency band | 865 MHz |
| Chip type | Alien Higgs-3 (Other upon request) |
| Memory organisation | EPC–96 bits, extendible to 480bits
TID – 96 bits unalterable &unique
User memory – 512 bits
Access password – 32 bits
Kill password – 32 bits |
| Read Range | On metal – Up to 3.5m , Off metal – Up to 2m |
| Data retention | 50 Years |
| Endurance cycle | 100,000 Cycles |
| Physical Characteristics | |

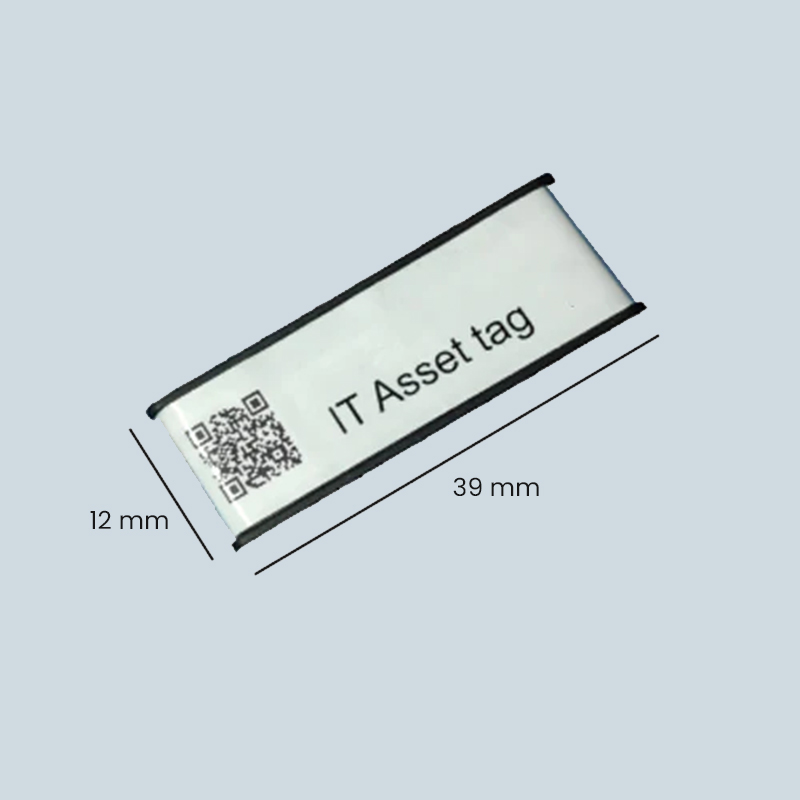

| Dimension | 39 x 12 x 3.5mm |
| Slot size | 1.5 x 17mm |
| Encasement | ABS/PC |
| Weight | 1.8 gm |
| Color | Grey (other upon request) |
| Quality Testing | 100% |
| Environmental Characteristics | |
| Ingress Protection | IP54 |
| Operating Temperature | -25°C to +85°C |
| Storage Temperature | -25°C to +85°C |
| Application | On metal |
| Attachment/ mounting | Adhesive / Cable tie |
| Chemical Characteristics | |
| Resistance to salt water exposure | No |
| Resistance to lubricant exposure | Limited |
| Resistance to IPA & thinner | Limited |
| Additional Customization | |
| Encoding | Yes |
| Logo/Text/Barcode printing | Yes |
