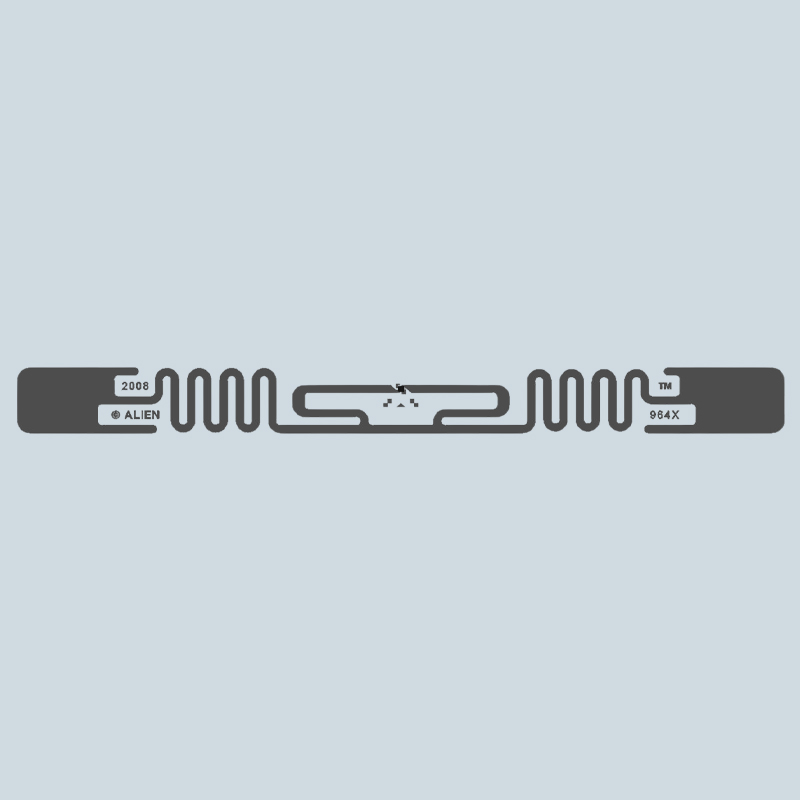

RFID Solar PV Tag
Model No: ETS-RT 19
Description
As per the guidelines issued by Ministry of Non-Renewable Energy (MNRE) each solar panel manufactured or installed in India must have a RFID tag so that it can be uniquely identified and managed all through its life cycle. ETS-RT 19 is an extremely rugged and reliable tag manufactured and supplied by ETS RFID which gives superior read range of up to 6 meters* even in the harshest outdoor weather conditions. The tag is fully compliant with ISO /IEC 18000-6C RF standards and work on Global UHF 865-928 MHz frequency.
The tag can be encoded with below details related to the solar module:
- Name of the solar module manufacturer and solar cell.
- Unique Serial Number
- Expected performance statistics
- Month and year of manufacturing
- Date and year of obtaining IEC PV Module qualification certification.
- Name of the test lab using IEC Certificate
- Country of manufacturing module and cell
- Technical characteristics of the module like: Wattage (Maximum Power, VOC, LMP, Vm(V), Isc, FF etc.

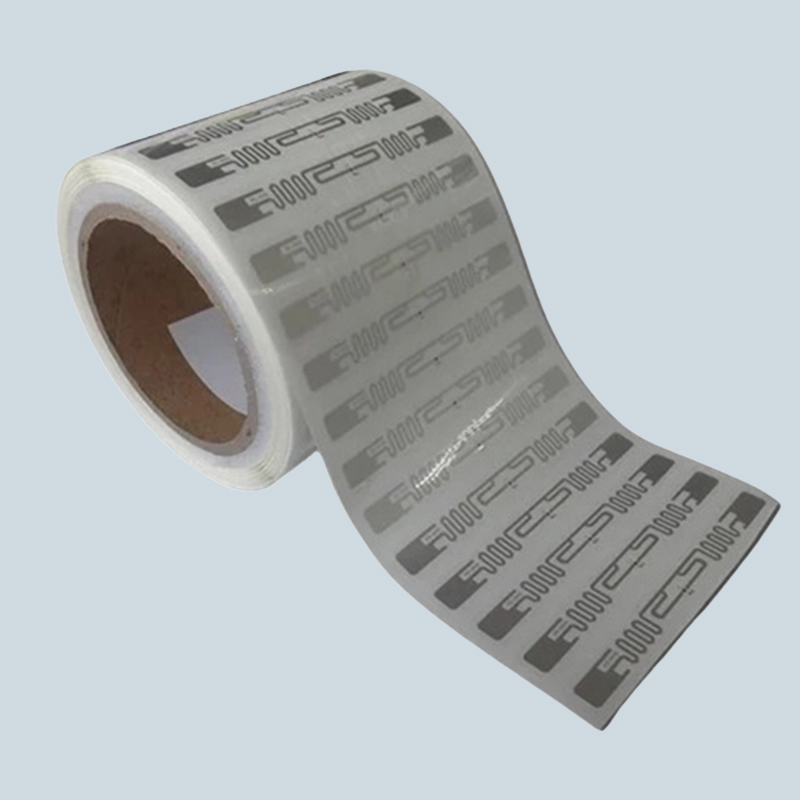

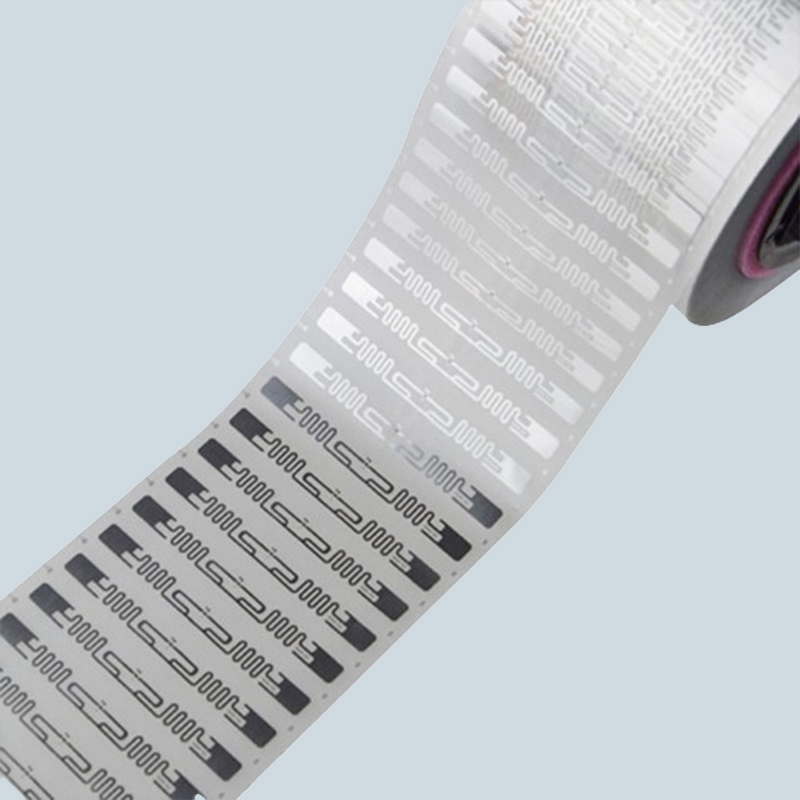

- These tags come in roll format and can easily be pealed off and applied on solar panels. Handheld readers are used to track and fetch the pre encoded information at the time of auditing
Features
UHF 865 -928 MHz
EPC Class 1 Gen2 , ISO 18000-6B,C
Range 6-8 MT.
Outdoor use
MNRE Guideline complaint.
Application Areas
Warehousing
Manufacturing
Item Level Identification
Supply Chain
Solar Power Plant
Solar PV Modules
| Model Number | ETS-RT 19 |
| Application | Solar Panel, PV Modules |
| Read Range | Up To 6 meters with handheld reader Up to 10 meters with fixed readers |
| Frequency | UHF 865-868MHz, 902-928 Mhz |
| Standard | ISO/IEC 18000-6C EPC GLOBAL CLASS 1 GEN 2 |
| Chip Type | Alien Higgs |
| Tag Dimension | 98.18 mm x 12.30 mm |
| Write endurance | 1,00,000 cycles |
| Memory | 32 bits TID, 96 bits EPC number, 512 bits user memory |
| Working Mode | Read and Write |
| Data Retention | 25 years |
| Anti-collision | Yes |
| Base Material | PET |
| Antenna Material | Aluminum |
| Operating Temp. | -40 degree Celsius to +70 degree Celsius |
| Operating humidity | 80% |
| Resistance | UV Protected, Water Proof, Chemical Resistant |
| Packaging | Roll Format |
| Encoding | As per MNRE Guidelines |

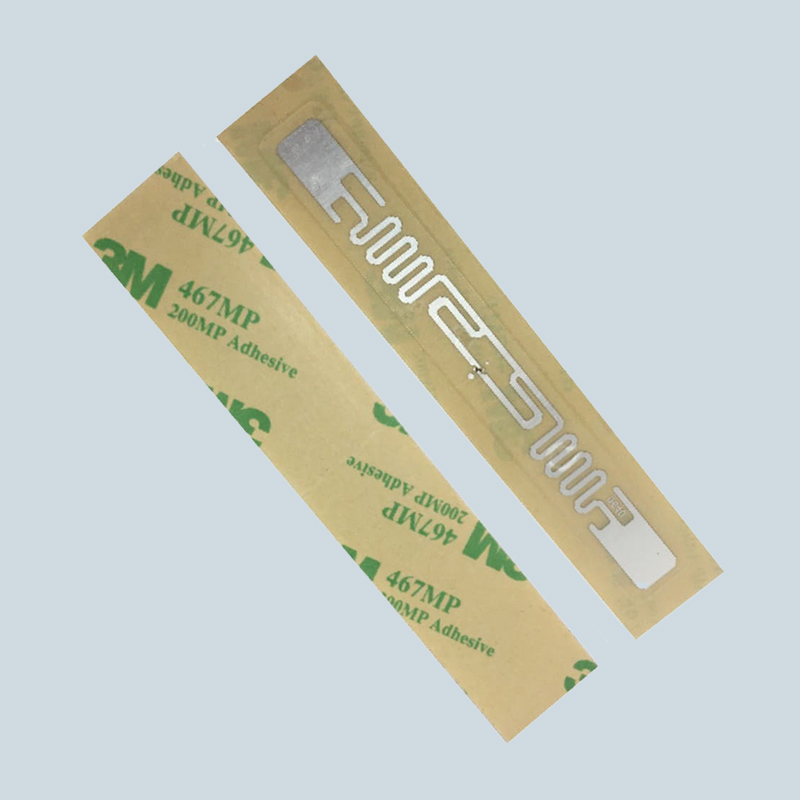

| Adhesive | High Grade industrial Adhesive |
