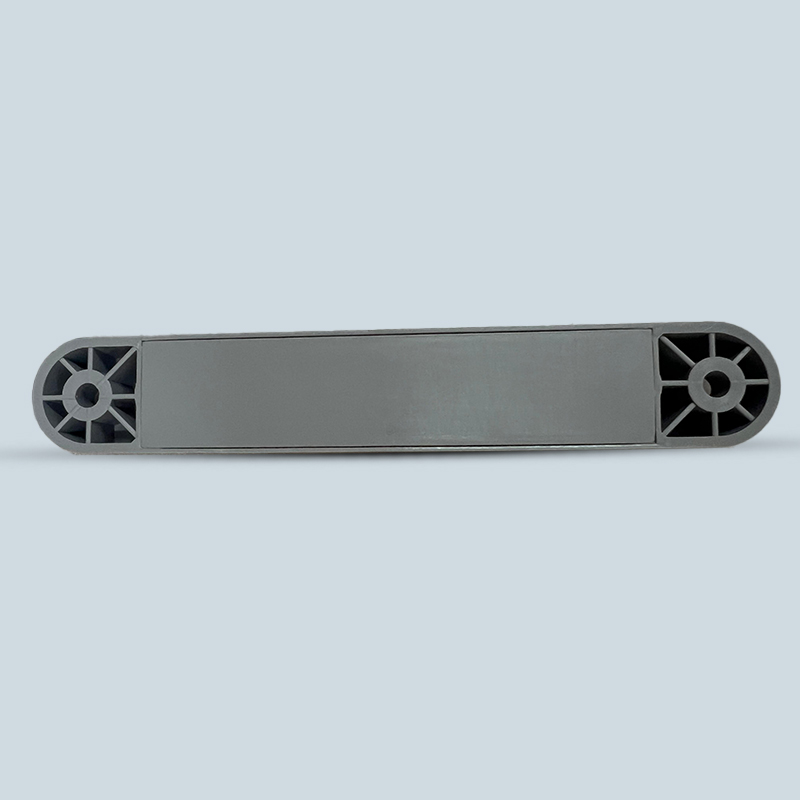

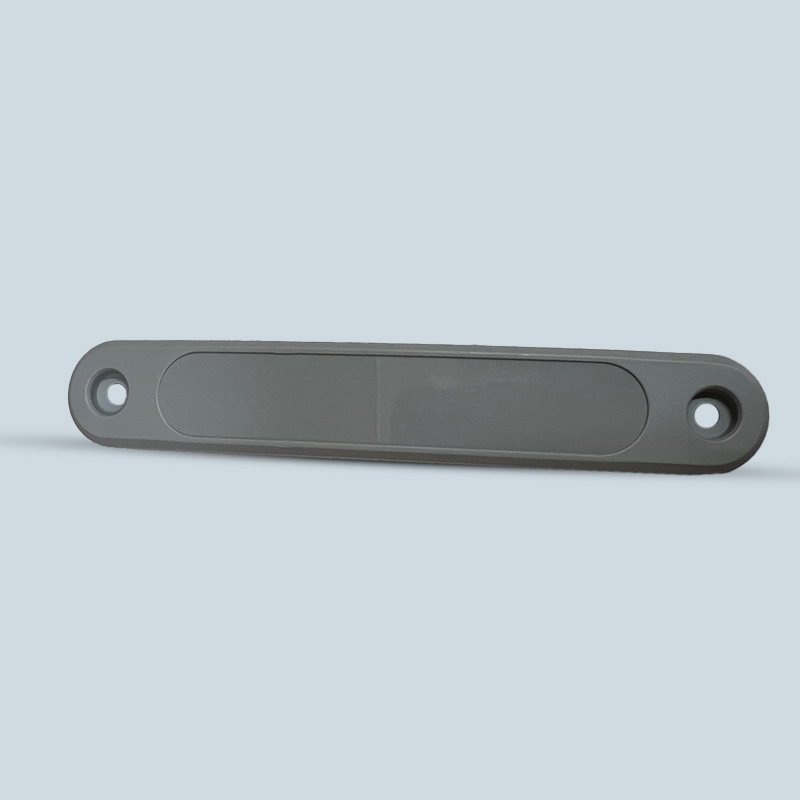

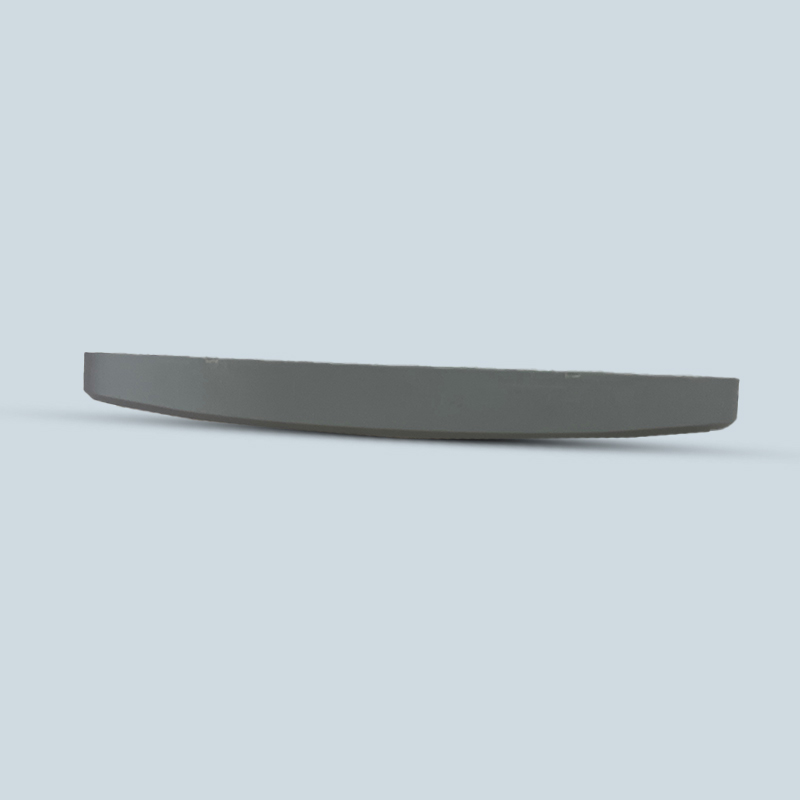

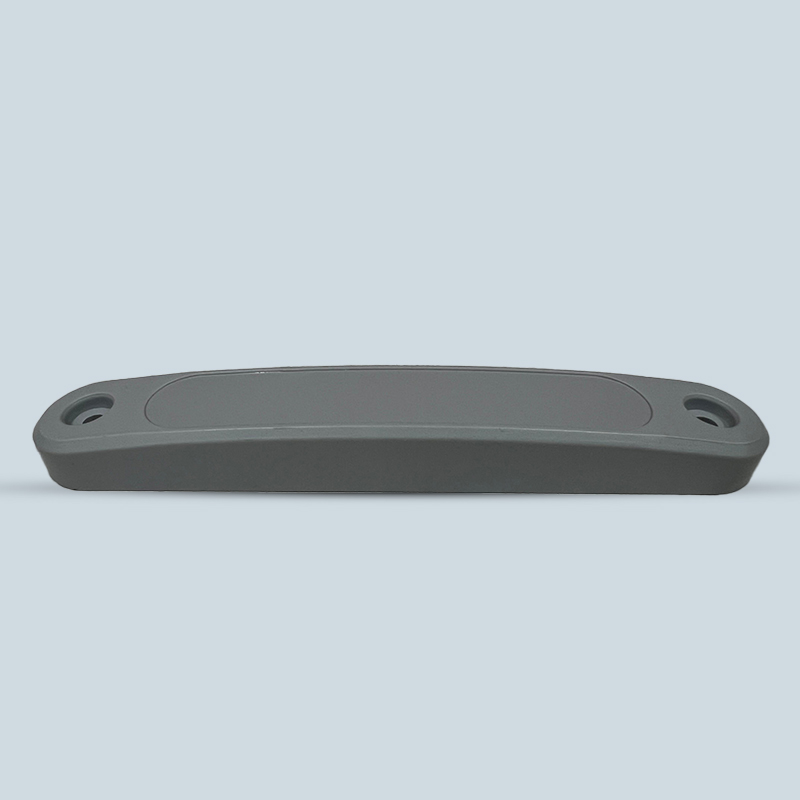

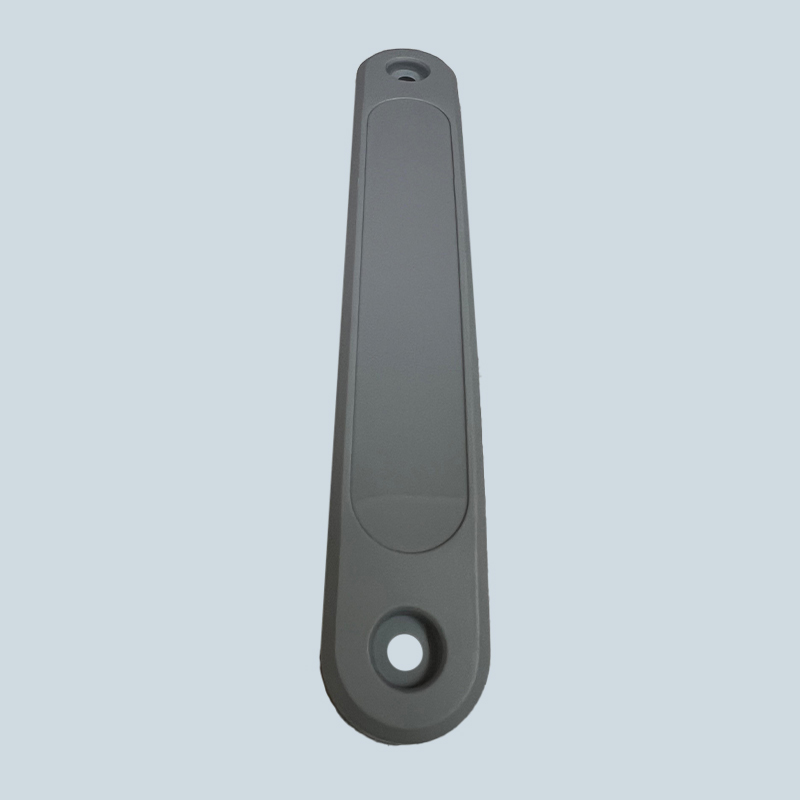

RFID Supersonic Metal Tag
Model No: Eco Supersonic
Description
UHF “Supersonic metal tag” is long range passive RFID tag fully compliant to ISO/IEC 18000-6C protocol. it is specially developed to track and identify the metallic and non metallic objects. Its encasement is made up of high quality engineering plastic which makes it highly durable and robust for outdoor application and can be customize with different IC variants and memory area depending on requirement
Features
865 MHz-915 MHz
EPC Class 1 Gen2, ISO 18000-6C
Range Range: Upto 12 MT.
IP67
Mount on Metal
Chemical & Water Resistent
Shock & Vibration Resistent
Custom Laser Printing
Rivet /Adhesive
Application Areas
Warehousing
Oil and Gas
Supply Chain
E-Commerce
Asset Tracking
Production
IT /ITES
| Electrical Characteristics | |
| Communication ISO Protocol | ISO/IEC 18000-6C, EPC Class – 1 Gen2 |
| Operating Frequency band | 865 MHz - 915 MHz |
| Chip type | Alien Higgs-3 (Other upon request) |
| Memory organisation | EPC–96 bits, extendible to 480bits TID – 96 bits unalterable &unique User memory – 512 bits Access password – 32 bits Kill password – 32 bits |
| Read Range | On metal – Up to 12m , Off metal – Up to 8m |
| Data retention | 50 Years |
| Endurance cycle | 100,000 Cycles |
| Physical Characteristics | |
| Dimension | 150 x 23 x 15mm |
| Hole size | Dia 5mm |
| Encasement | Engineering Plastic |
| Weight | 26 gm |
| Color | Grey |
| Quality Testing | 100% |
| Environmental Characteristics | |
| Ingress Protection | IP67 |
| Operating Temperature | -25°C to +85°C |
| Storage Temperature | -25°C to +85°C |
| Application | On & Off metal both |
| Attachment/ mounting | M5 Screw, rivet & VHB tape |
| Chemical Characteristics | |
| Resistance to salt water exposure | Yes |
| Resistance to lubricant exposure | Yes |
| Resistance to IPA & thinner | Yes |
| Additional Customization | |
| Encoding | Yes |
| Logo/Text/Barcode printing | Yes |
