RFID Long Range Integrated Reader
Model No: ETS-IR 02
Description

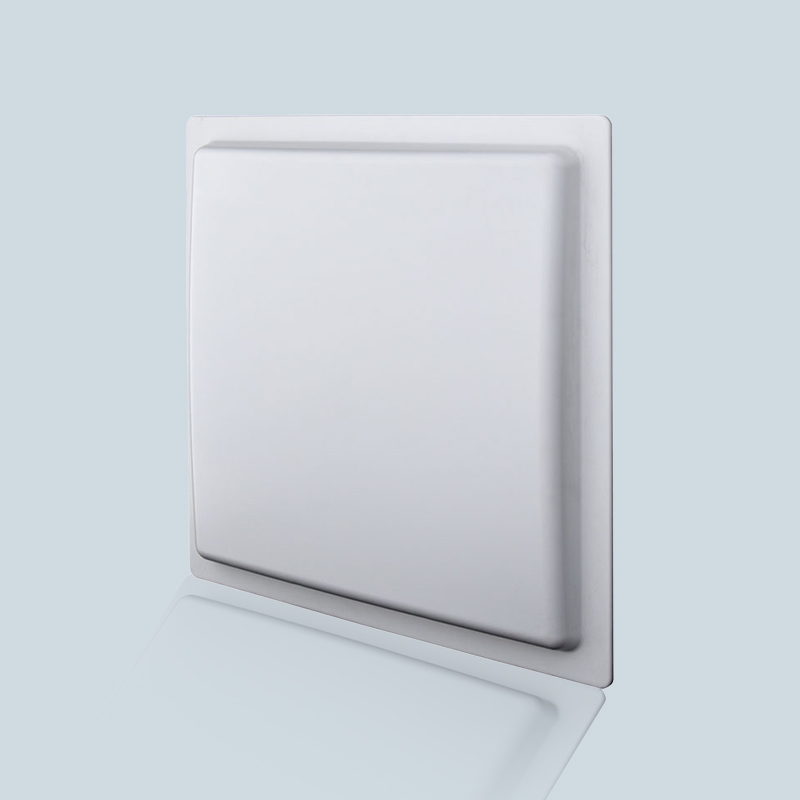

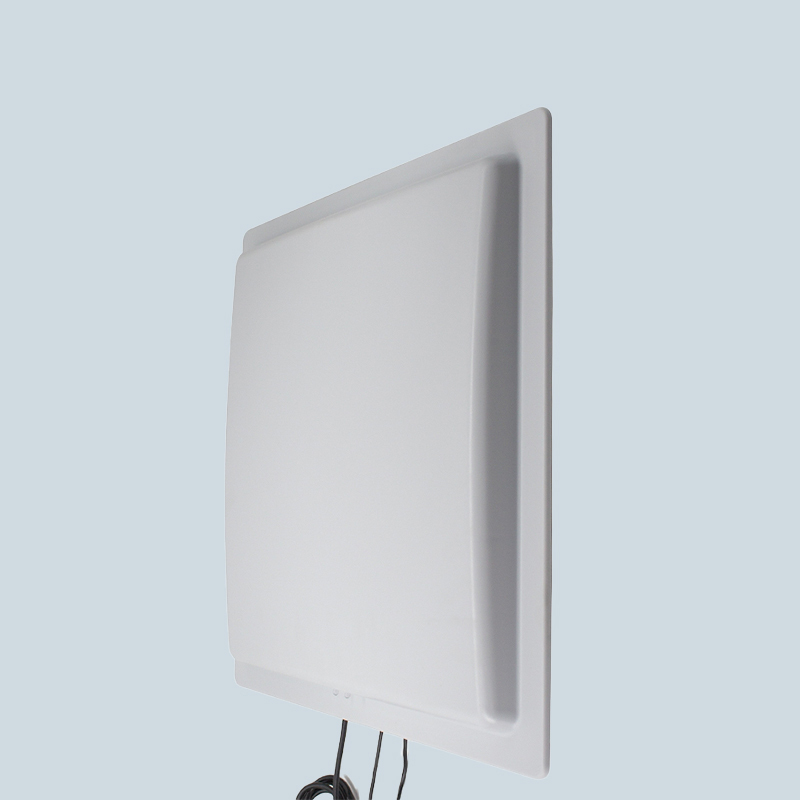

ETS-IR 02 is one of the most powerful all weather ruggedized integrated RFID reader designed with the advanced digital signal processing algorithm to support high & accurate read – write operation. It works on global UHF frequency (865-868MHz, 902-928 Mhz) standards and has a read range of Up to 15 mt (adjustable) which makes it an ideal and most widely used UHF Long Range RFID reader for applications like gate automation, parking management, personal tracking and material asset identification. It comes with a 12dbi integrated antenna which provides excellent tag identification rate even in the most adverse and harsh environment. This reader supports RS232, RS485, Wiegand, TCP/IP (RJ45) interface via which the data is transmitted to the connected system. The product Is IP 65 rated and has a built in LED and buzzer. It comes with mounting accessories, adapter and SDK for configuration and integration with third party software.
Features
UHF (865-928 MHz)
Range 15 Meters
Integrated Antenna
LAN, RS232, RS485
LED & Buzzer
Rugged Design
Low Cost
IP65 Outdoor Use
SDK, Demo Software
Application Areas
Electronic Toll Collection
Attendance Tracking
Vehicle Access Control
Parking
Manufacturing
Race Time Tracking
Warehouse
| Physical Characteristics | |
| Dimensions | 445 mm x 445 mm x 65 mm |
| Weight | 2.4 kg |
| Power Supply | 100- 240V, DC +9V (Power Adapter) |
| Power Consumption | 10 Watt |
| Power Type | Adapter Power |
| Outer Body | ABS |
| Reading notification | Integrated LED (Red and Green) and Buzzer |
| UHF | |
| Protocol | ISO18000-6B, EPC Class 1 Gen2 (ISO 18000 - 6C) |
| Operating Frequency | 865 MHz - 868 MHz (India and EU standard, 902 MHz - 928 MHz (US standard) |
| Frequency Hopping | FHSS |
| Antenna Gain | 12 dbi built in antenna |
| RF Power | 0-30dBm, software adjustable |
| Operating | Active mode, Answer mode, Trigged mode |
| Mode | Active mode, Answer mode, Trigged mode |
| Read Range | Up to 15 meters (Tag and Environment dependent) |
| Read Rate | 400 Tags/ mili second |
| Communication | |

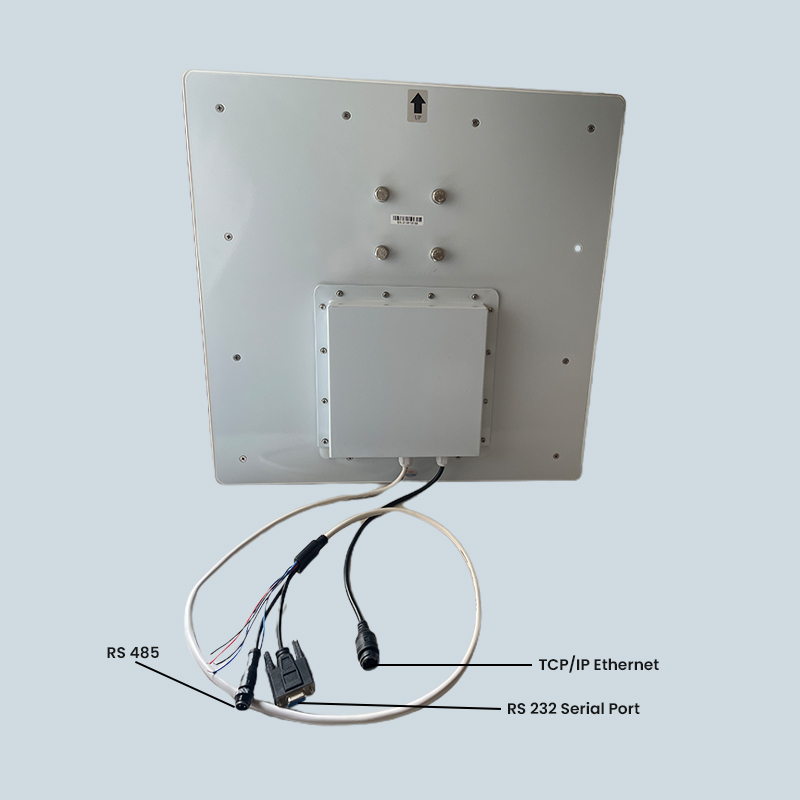

| Interface | RJ45 (TCP/IP), RS232 (Serial Port), RS485, Wiegand 26/34, |
| Model No | ETS-IR 02 (RS232, RS485 and Wiegand) ETS-IR 02T (RS232, Rs485, TCP/IP (LAN) |
| Environmental Specification | |
| Operating Temp. | -20°C + 60°C |
| Storage Temp. | -20°C + 75°C |
| Humidity | 10 - 95% |
| IP Protection Class | IP65 |
| Usage Type | Outdoor use |
| Developing Platform | |
| Demo Software | Free demo software for configuration, read & write functions |
| SDK | C#, VC, VB, Java Linux, Delphi |
| Accessories | |

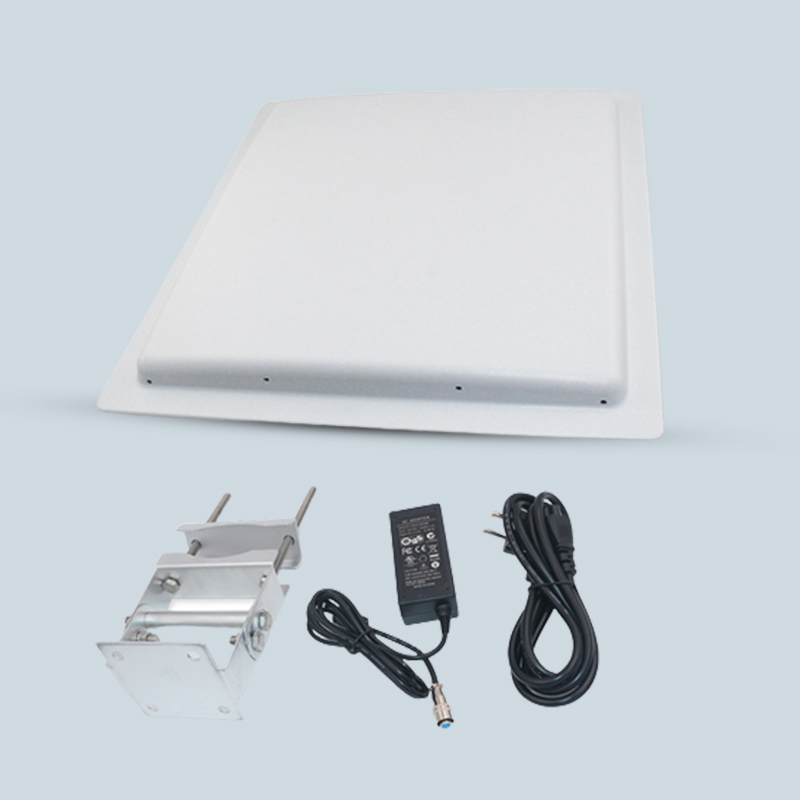

| Inclusion | Power Adapter, Mounting clamp |
