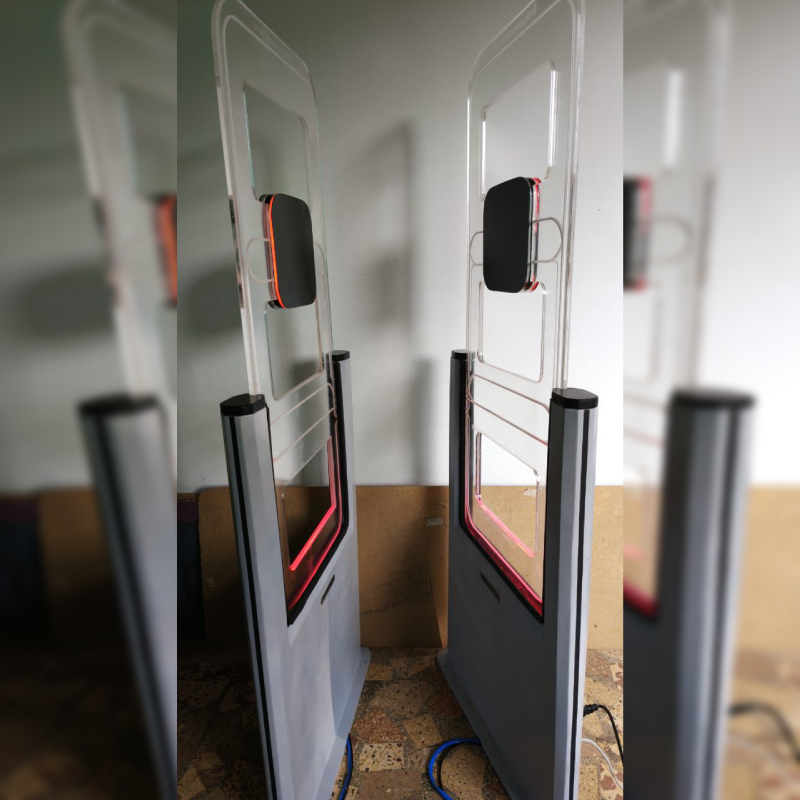

RFID UHF Security Gate
Model No: ETS- RG 03
Description
ETS-RG 03 is a powerful 3D gate designed to read student cards / tags passing through it. It has a max read range of up to 7 mt and it fully support IS0 18000-6B and 6C UHF standard protocols. With a built in multi tag read facility, it is most widely used in applications like Student Attendance Tracking, Asset movement tracking and Library
Application Areas

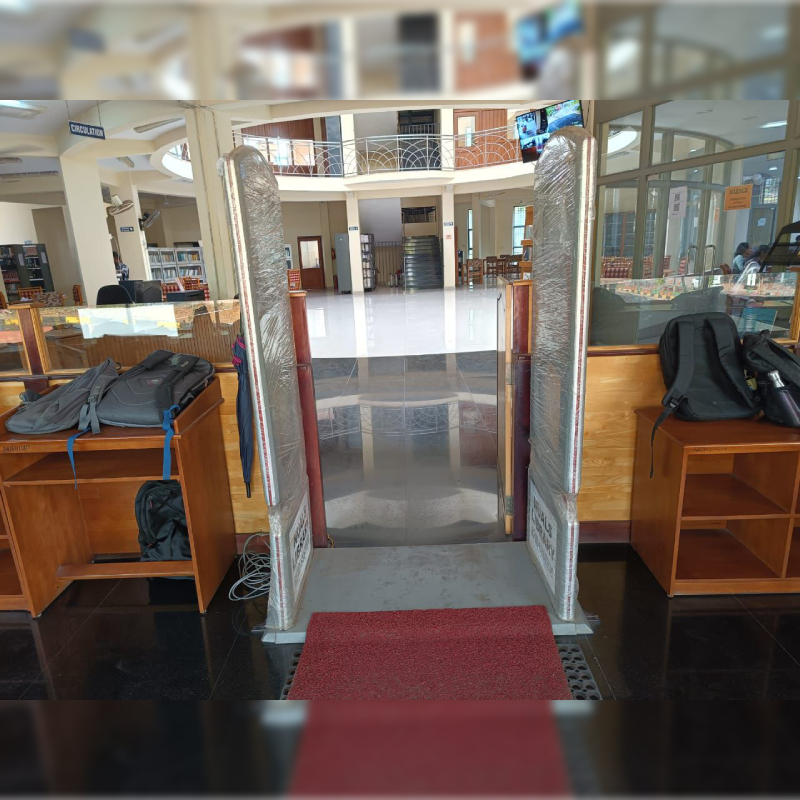

Library Automation
Attendance Tracking
Asset Tracking
Manufacturing
Warehouse Facility
Showrooms
| Air Interface Protocol | ISO 18000-6C (EPC Class 1 Gen 2) ISO18000-6B |
| Frequency Band | 865MHz-868MHz, and sub bands |
| RF Power | 0 to +31dBm |
| Receive Sensitivity | -80dBm |
| Antennas | 4 High performance circular antennas |
| Read Range | Up to 7 mt |
| Communication | 10/100 BaseT Ethernet (RJ45); RS-232 (DB9), RS-485 |
| GPIO | 2 Inputs, TTL compatible, 0-5V, 2 output,TTL compatible, 0-5V, 3 channel relay output control 0-250V AC |
| Power Supply | Input: 100-240V-50-60HZ 1.5A |
| Multiple Tag Reading | Up to 400 tags in a second. |
| Design | 3D |
| Housing Material | Acrylic and metal sheet |
| Transmitting Power | 0.5 W to 6 W variable |
| Dimension | 1664 mm x 636 mm x 118 mm |
| Operating Temp. | -10 to + 60 degree celcius |
| Weight | 25 Kg |
| Interface | TCP/IP (Ethernet), Wifi (optional) |
