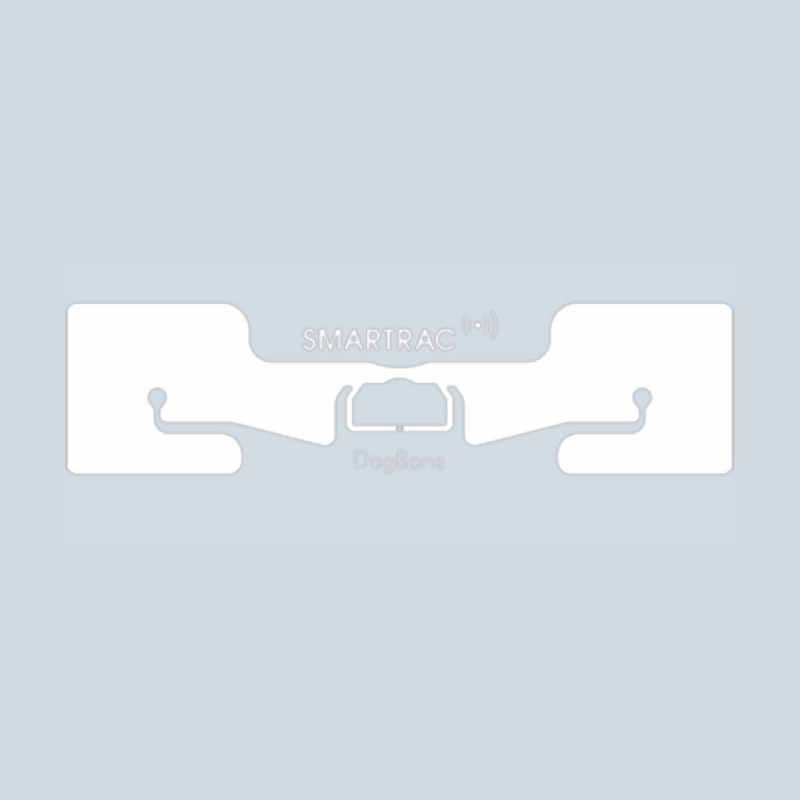

Smartrac Dogbone Inlay
Model No: ETS-9727
Application Areas
Parking
Toll Management
Marathon Racing
Factory Automation
| Physical Specifications | |
| Inlay Size | 97mm X 27 mm |
| Label size | 100mm X 50mm, 100mm X 30mm |
| Adhesive | Acrylic |
| Delivery format | Reel |
| No. of labels/Reel | 5,000 pcs /reel |
| Pitch | 30 mm / 1.181 in |
| Core Inner diameter | 76 mm / 3 in |
| Available face material | PET/Paper |
| Environmental Resistances | |
| Operating temp. | -40 °C to 85 °C |
| -40 °F to 185 °F | OD < 12” [304.8mm] |
| Relative humidity | 5-95% Non-Condensing |
| UV Resistant | No |
| Personalization Options | |
| Operating mode | Passive |
| Frequency Band | UHF 860 - 960 MHz |
| RF protocol | ISO 18000-6C, EPC Class 1 Gen 2 |
| IC | NXP UCODE G2iM |
| Functionality | Read/Write |
| EPC memory | 256 bits/ up to 448 bit |
| TID memory | 96 bit |
| User memory | 640 bit |
| Web Width | 100 mm / 3.937 in |
| Access password | 32 bit |
| Kill password | 32 bit |
| Write cycle endurance | 2,00,000 cycles |
| Read range | up to 15 meters |
| Tamper proof | Security cut/TE |
| RoHs | EU Directive 2011/65/EC and Directive (EU) 2015/863 |
| Personalization Options | |
| Encoding | Possible |
| Customized printing | Possible |
