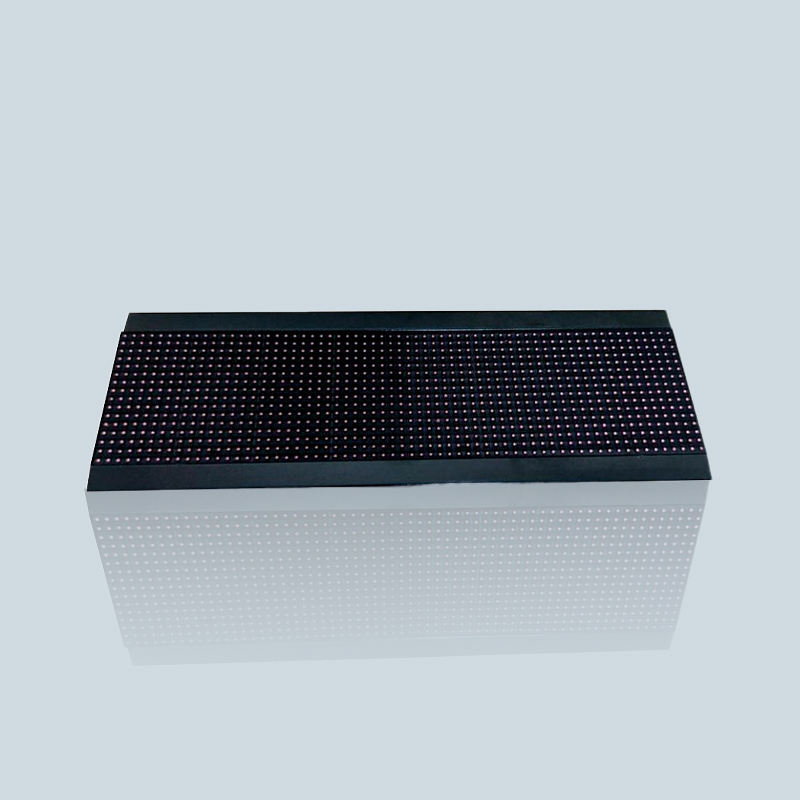

User Fare Display
Model No: ETS- UFD 100
Application Areas
Toll Plaza
Manufacturing Industries
Business Park
Weighbridge
Parking
| Product Name | User Fare Display |
| Make | Eco Track Systems |
| Technology | LEDs |
| Size | 600 mm x 160 mm |
| Colour | Red LED |
| Aspects | Red Aspect |
| Enclosure | Metal Body, Intensity control by software, |
| Interface Communication | RS 232 serial communications |
| Voltage | 230V AC |
| IP Rating | IP65 |
| PCB | Glass epoxy NEMA FR4, Black masking on front and green masking on rear. |
| Power Supply | 230 V AC / 50 Hz |
| Power consumption | 30watt approx. |
| Visibility | > 20 meters under normal condition |
| Environmental Protection | Conforming to IP 65 (LED sealed retrofit kit) |
| Operating Temperature | -5 C to +65 C |
| Weight | 10 kg maximum |
| Humidity | 95 % Rh |
| LED Reliability | > 100000 Hours |
| Communication interface | RS232/RS485, two way communication |
| Pixel pitch | 10mm |
| Display Language | English, Hindi and Local Language |
